Atrium B27-3W-Dali-V4
Black - 9844044

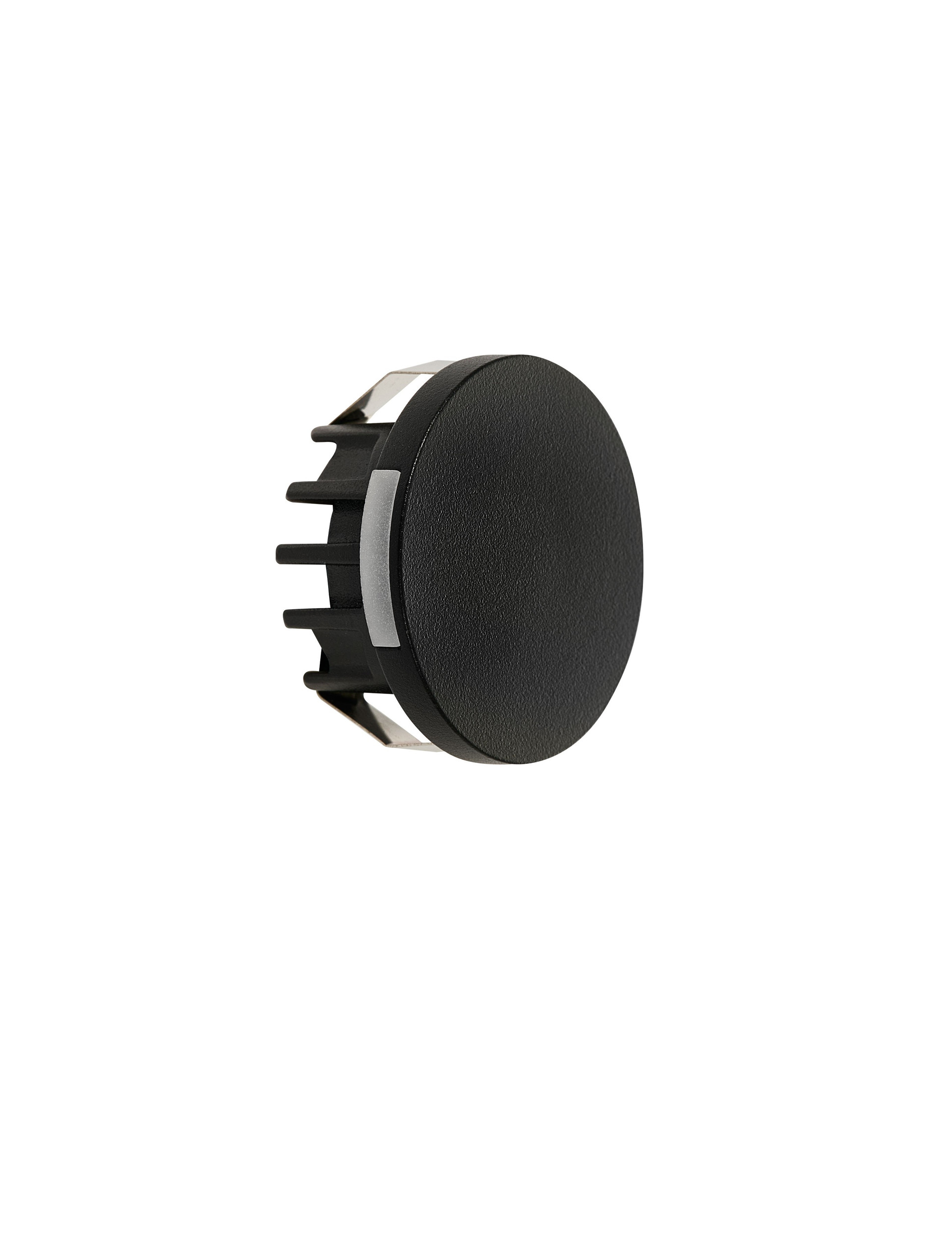

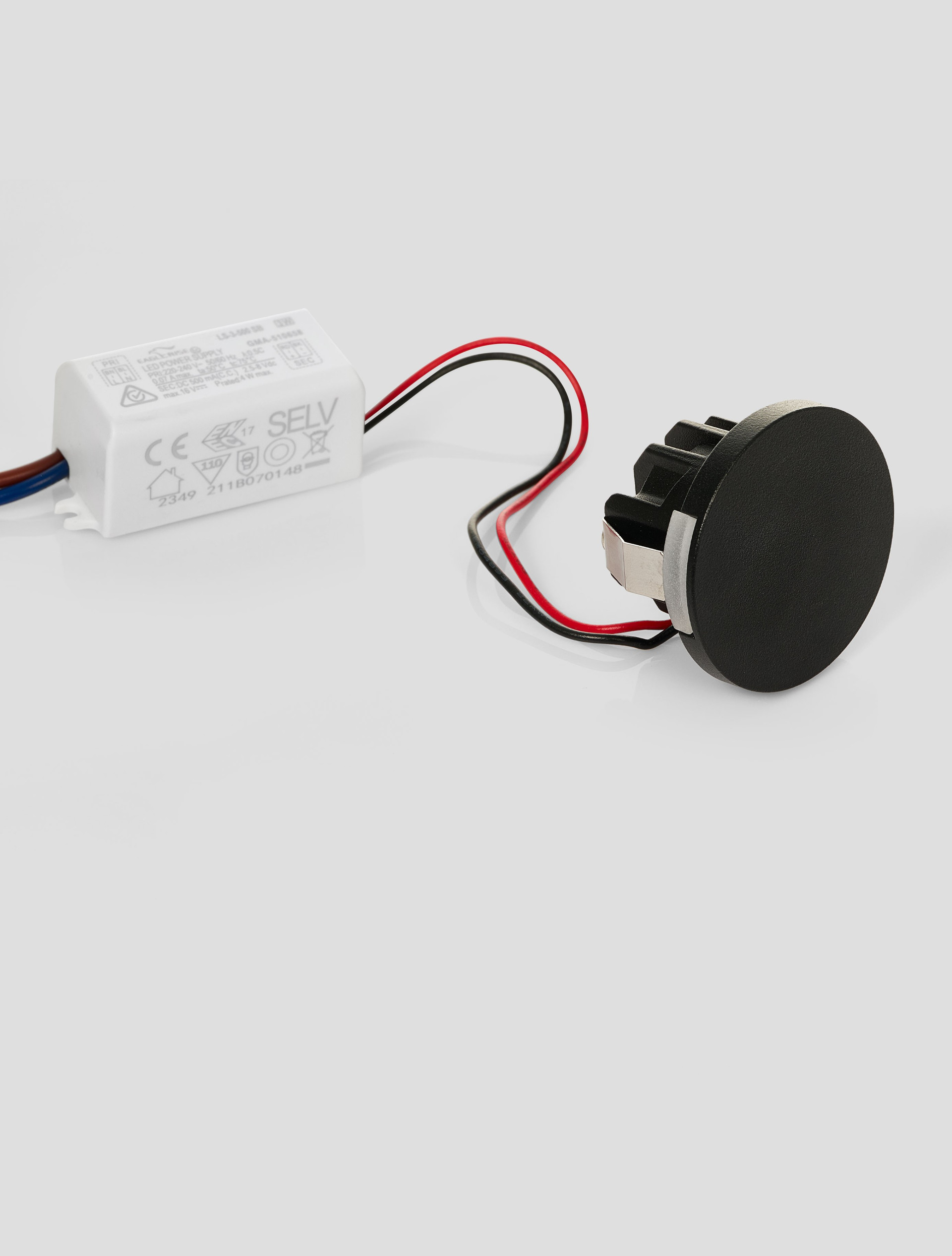

The Atrium B27-3W-Dali-V4 is a recessed indoor steplight designed for architectural applications. It features a compact black aluminum body with a diameter of 4.2 cm and height of 2.6 cm. The fixture includes a 3W LED light source with a warm 2700K color temperature and a CRI above 80, ensuring pleasant ambient illumination. It supports DALI dimming and comes with an integrated driver. Its IP20 and IK03 ratings make it suitable for indoor use, recessed into steps or walls for subtle guidance lighting.
Dimming Type
Dali

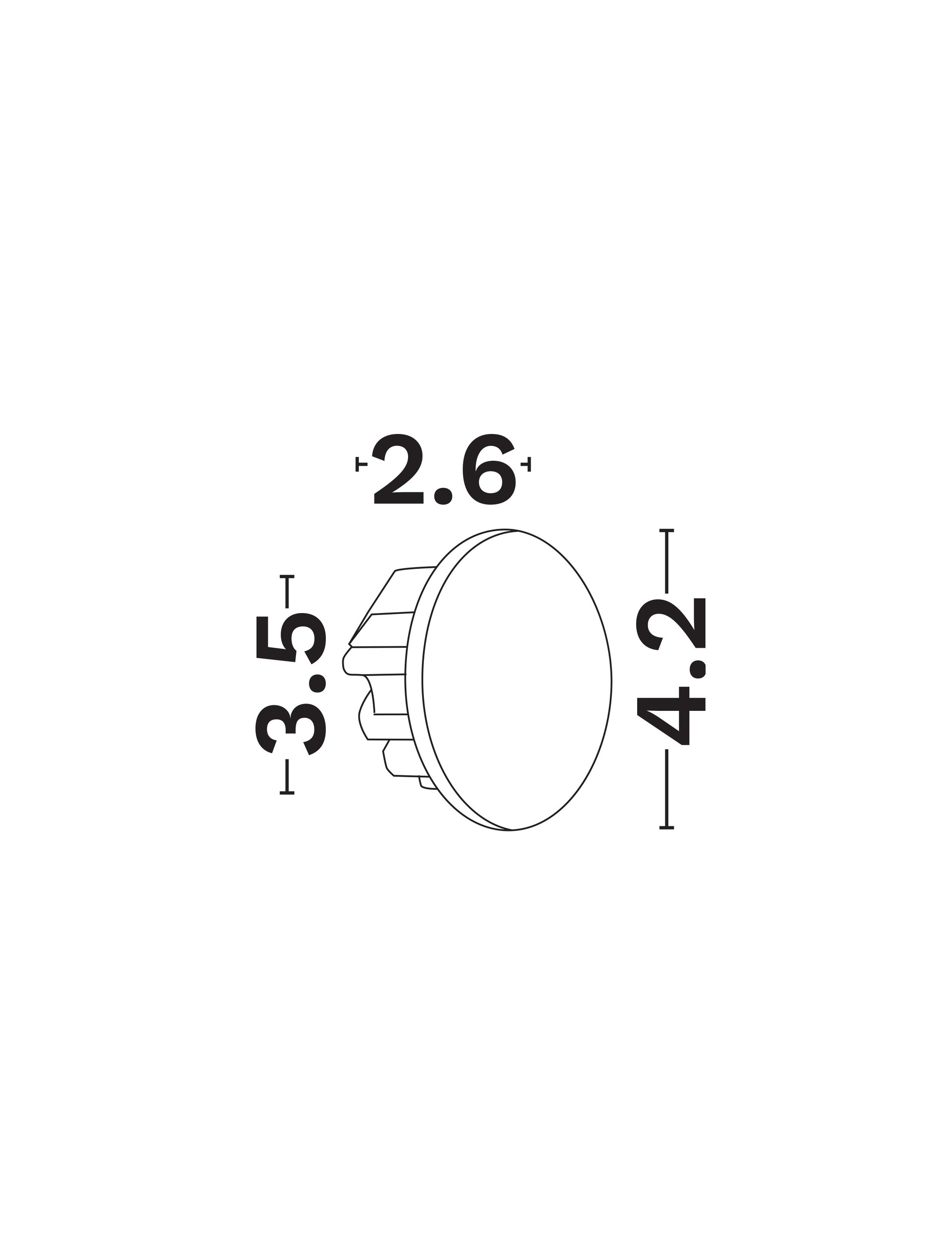

Cut Out (cm)
3.5
Dimmable
Yes
IP Rating
20
Height (cm)
2.6
Diameter (cm)
4.2
Led Module Replaceable
No
Net Weight (kg)
0.055
EAN
5212017456700
Colour
Black
Material
Aluminum
Adjustable
Νο
Cut Out (cm)
3.5
IP Rating
20
Mounting Type
Recessed
IK Rating
3
Application Environment
Indoor
Mounting Location
Ceiling
Power (W)
3
CCT (K)
2700
CRI
>80
Input Voltage (V)
3.2
Dimming Type
Dali
Light Colour Designation
Warm White
Luminus Flux (lm)
5
Luminous Efficacy (lm/w)
1.67
Beam Angle (°)
90
Light Source
LED
SDCM
<5
UGR
<19
Current Type
AC
Input Current (mA)
500
Driver Included
Yes
Warranty (Years)
2
Lifetime (Hours)
20000
Class
II
Certificates
CE, UKCA
