Atrium W27-3W-Dali-V6
White - 9844047

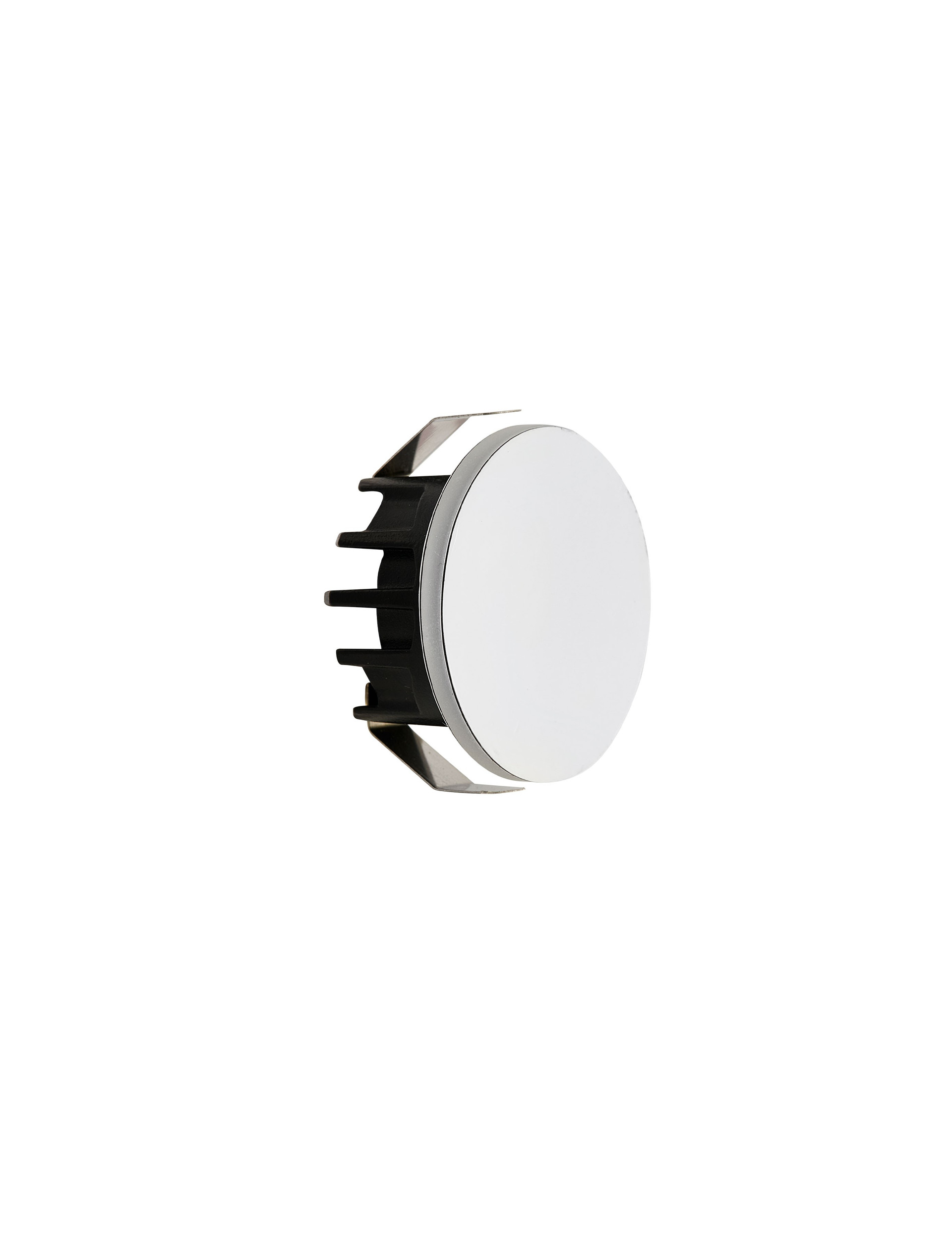

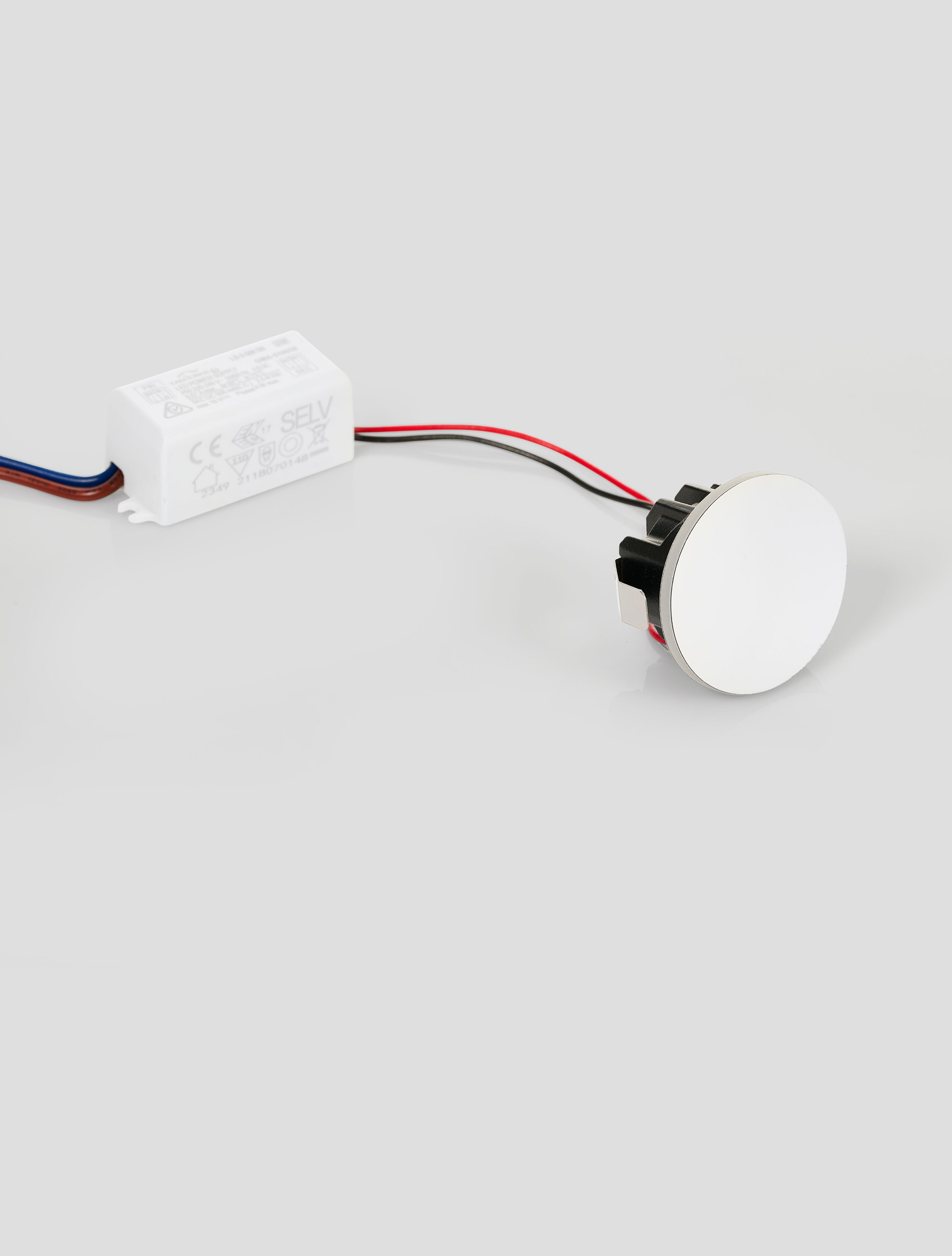

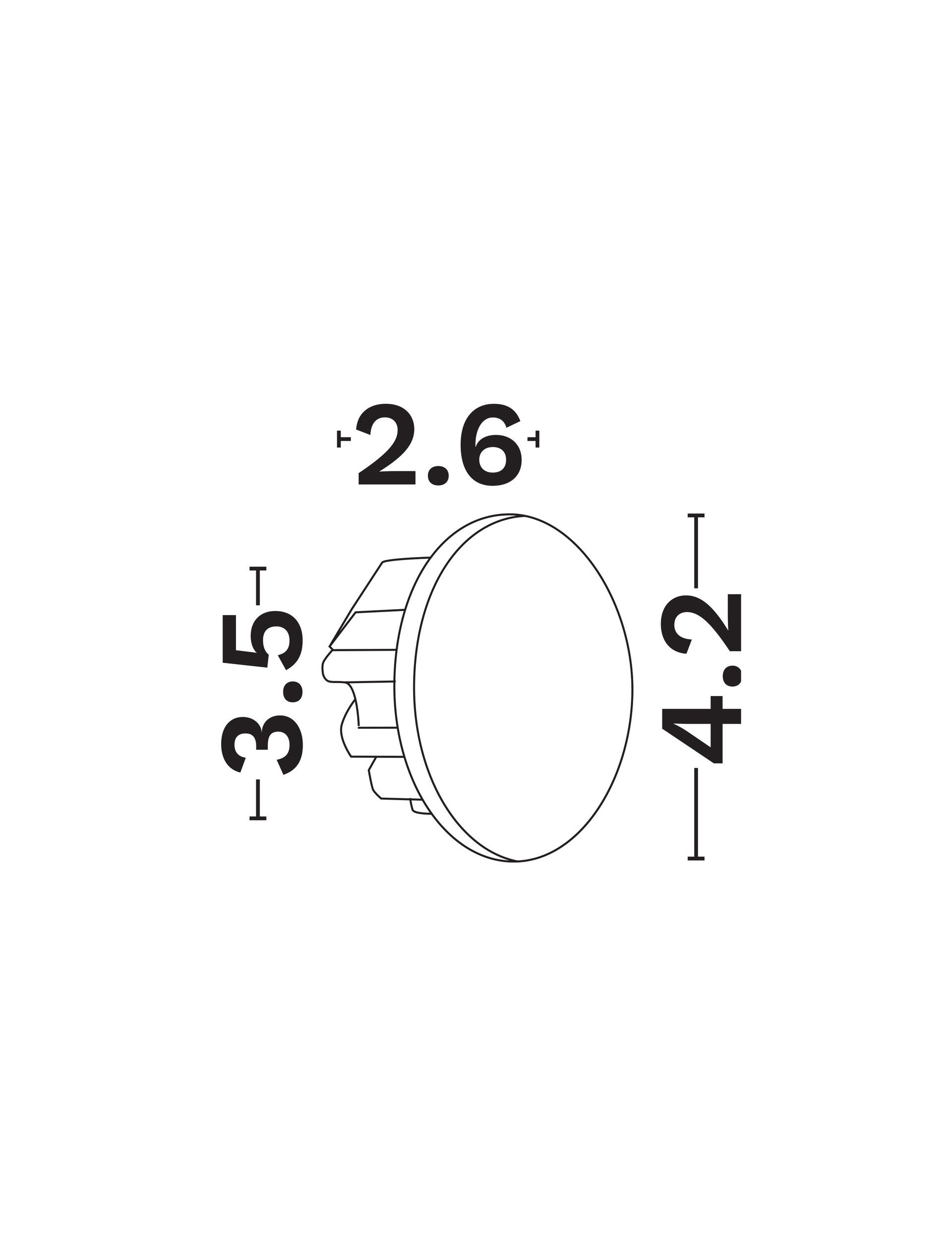

The Atrium recessed steplight offers a compact 4.2 cm diameter and 2.6 cm height design in white aluminum. It delivers 3W power with warm 2700K color temperature and is dimmable via DALI control. With an IK3 impact rating and IP20 protection, it suits indoor architectural applications. The fixture includes an integrated driver and features a narrow 3.5 cm cut-out for flush mounting. Compatible accessories include the Atrium B-Black Box Metal and DALI drivers for flexible installation.
Dimming Type
Dali
Cut Out (cm)
3.5
Dimmable
Yes
IP Rating
20
Height (cm)
2.6
Diameter (cm)
4.2
Led Module Replaceable
No
Net Weight (kg)
0.055
EAN
5212017456731
Colour
White
Material
Aluminum
Adjustable
Νο
Cut Out (cm)
3.5
IP Rating
20
Mounting Type
Recessed
IK Rating
3
Application Environment
Indoor
Mounting Location
Ceiling
Power (W)
3
CCT (K)
2700
CRI
>80
Input Voltage (V)
3.2
Dimming Type
Dali
Light Colour Designation
Warm White
Luminus Flux (lm)
20
Luminous Efficacy (lm/w)
6.67
Beam Angle (°)
180
Light Source
LED
SDCM
<5
UGR
<19
Current Type
AC
Input Current (mA)
500
Driver Included
Yes
Warranty (Years)
2
Lifetime (Hours)
20000
Class
II
Certificates
CE, UKCA
