Imagine 2 B30-12W-A120
Black - 9492894

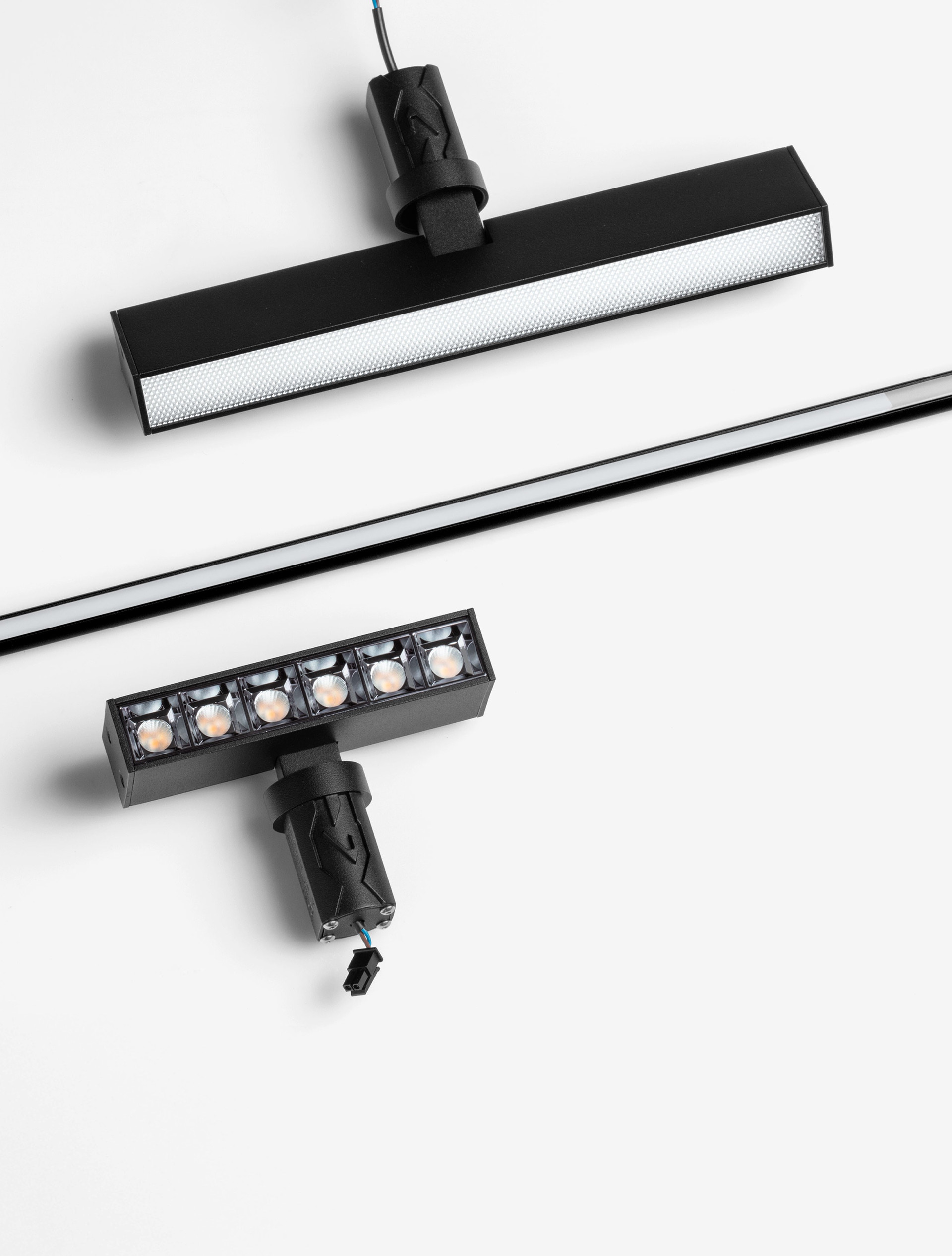

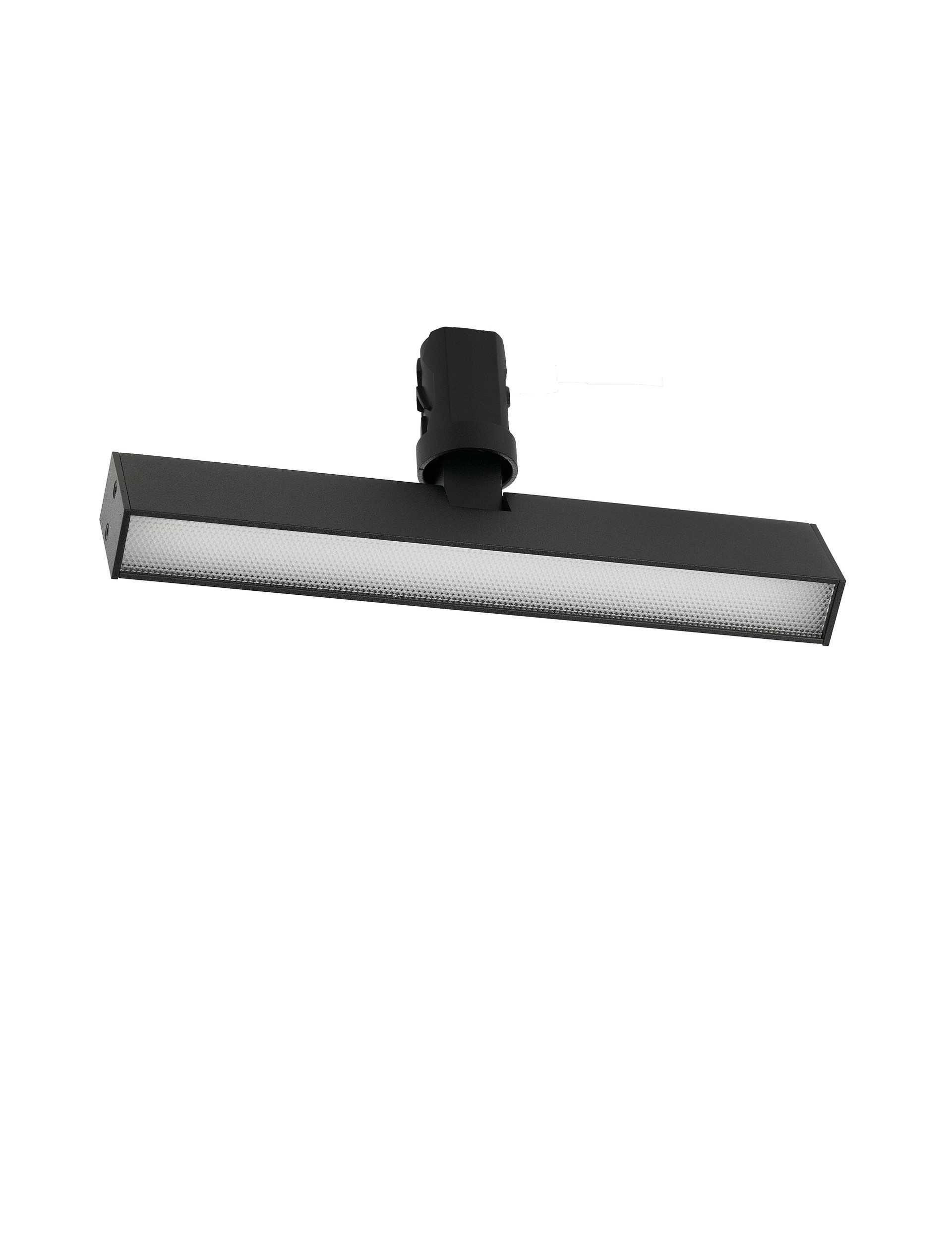

The Imagine 2 recessed LED lighting module features a sleek black aluminum housing with dimensions 22 cm length, 3.1 cm width, and 9.4 cm height. It delivers 12W power with a high color rendering index (CRI >90) for quality indoor illumination. Designed for architectural applications, this module offers an adjustable beam angle of 120° and robust IK8 impact resistance. Its compact form and recessed mounting make it ideal for modern interiors requiring discreet, efficient lighting solutions.
Dimmable
No
IP Rating
20

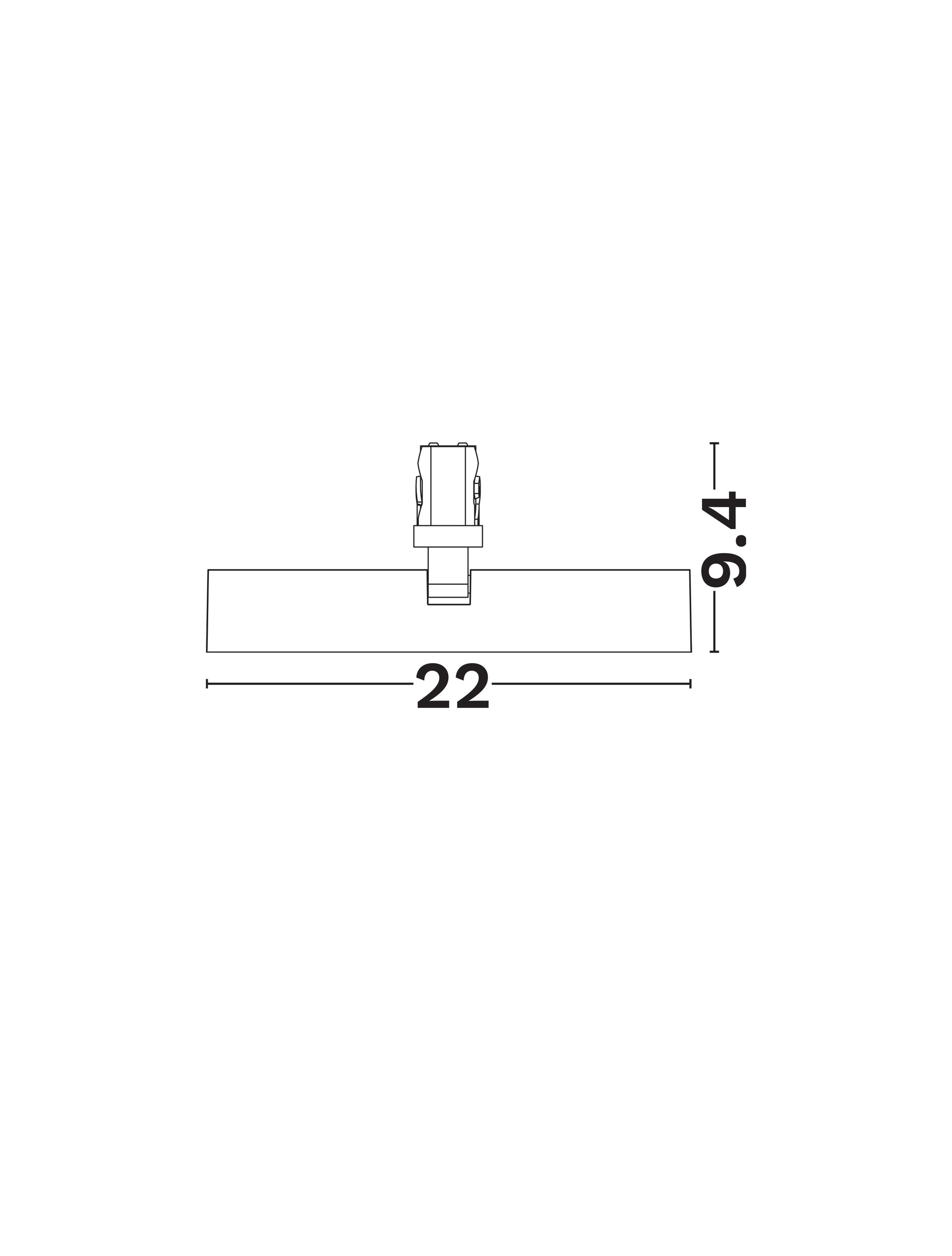

Length (cm)
22
Height (cm)
9.4
Width (cm)
3.1
Led Module Replaceable
No
Net Weight (kg)
0.28
EAN
5212017454119
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Recessed
IK Rating
8
Application Environment
Indoor
Mounting Location
Ceiling
Power (W)
12
CCT (K)
3000
CRI
>90
Light Colour Designation
Warm White
Luminus Flux (lm)
584
Luminous Efficacy (lm/w)
48.67
Beam Angle (°)
120
Light Source
LED
Current Type
DC
Warranty (Years)
5
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
