Imagine 2 B30-12W-Dali-A120
Black - 9492916

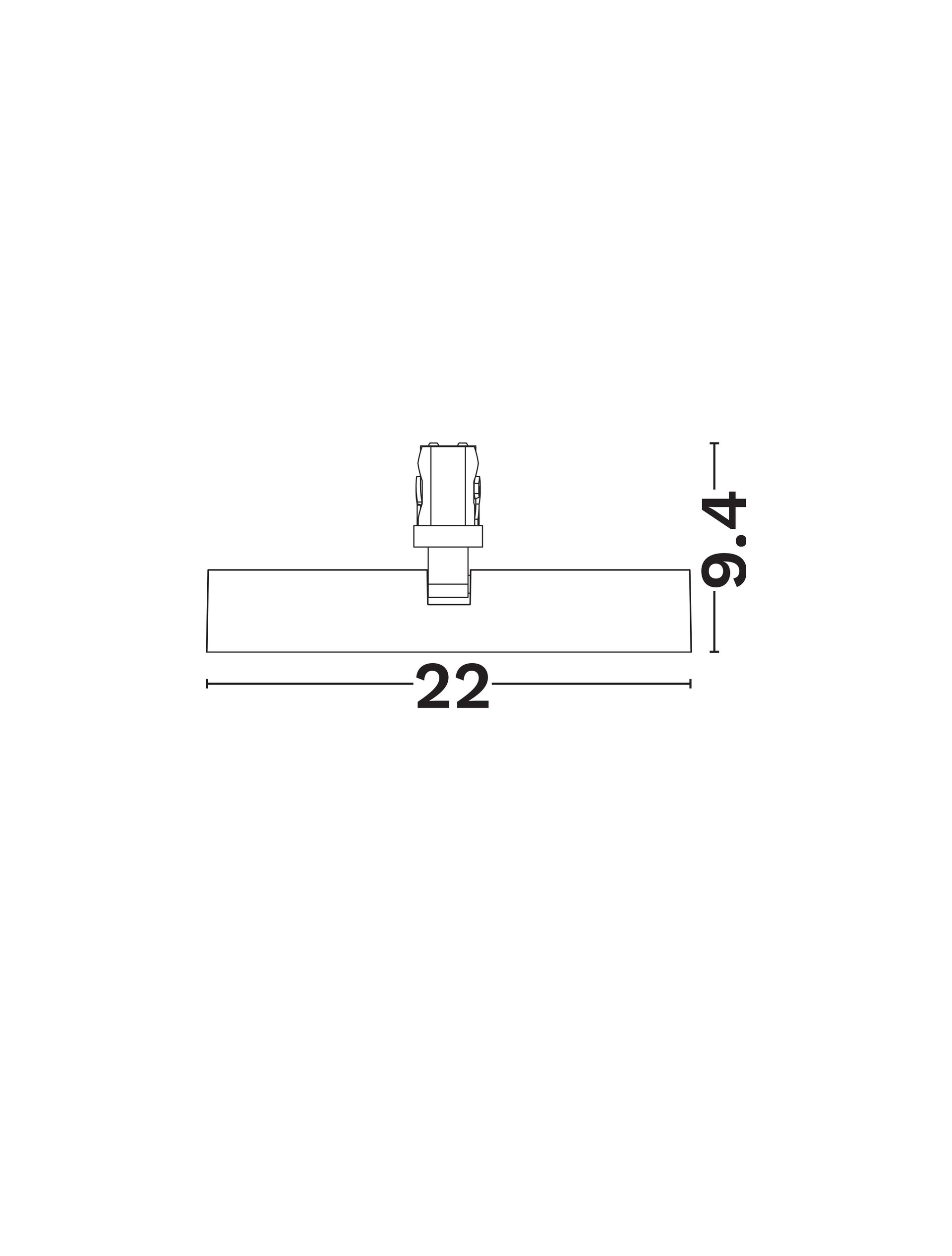

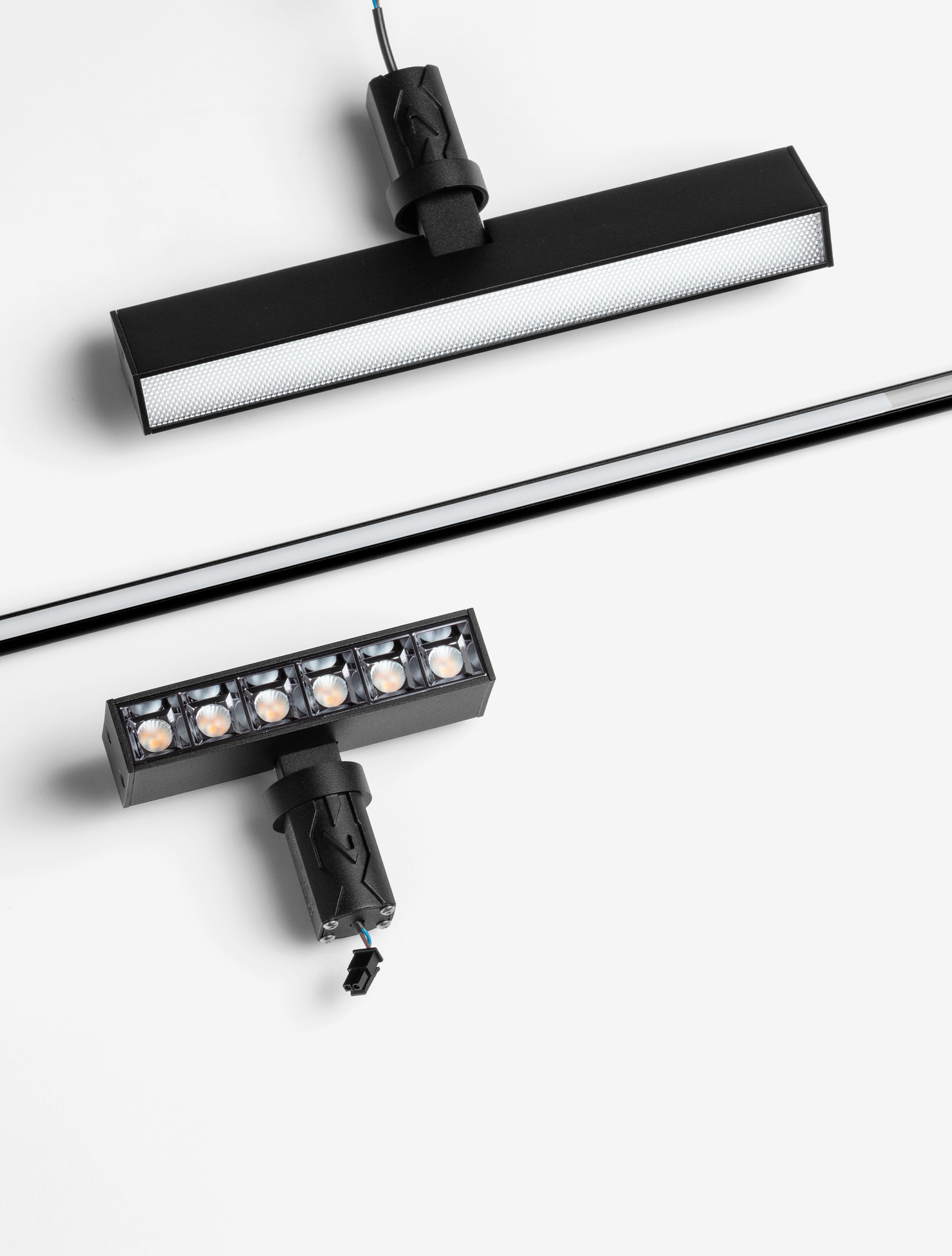

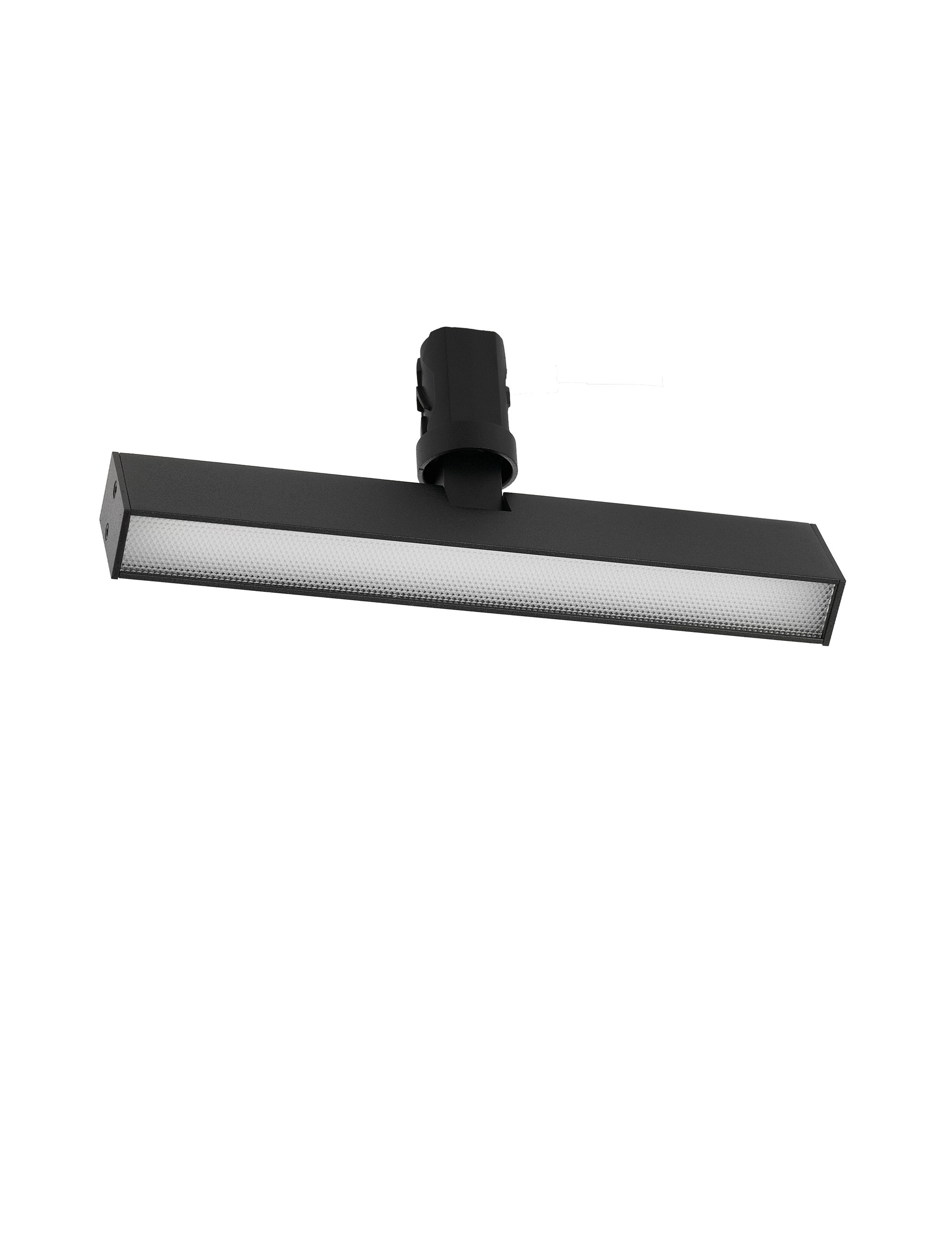

The Imagine 2 lighting module features a sleek black aluminum body designed for recessed indoor installation. Delivering 12W of power with a high CRI over 90, it ensures quality light rendering. Equipped with a Dali dimming system, this adjustable LED module offers precise control over lighting levels. Its compact dimensions (22 cm length, 9.4 cm height, 2.5 cm width) and IK08 impact resistance rating make it suitable for architectural applications requiring durability and refined aesthetics.
Dimming Type
Dali
Dimmable
Yes
IP Rating
20
Length (cm)
22
Height (cm)
9.4
Width (cm)
2.5
Led Module Replaceable
No
Net Weight (kg)
0.28
Additional Information
Dali Driver Included
EAN
5212017455925
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Recessed
IK Rating
8
Application Environment
Indoor
Mounting Location
Ceiling
Power (W)
12
CCT (K)
3000
CRI
>90
Dimming Type
Dali
Light Colour Designation
Warm White
Luminus Flux (lm)
584
Luminous Efficacy (lm/w)
48.67
Beam Angle (°)
120
Light Source
LED
Current Type
DC
Driver Included
Yes
Warranty (Years)
5
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
