One L 20-22
Popular Multicolour - 9090044

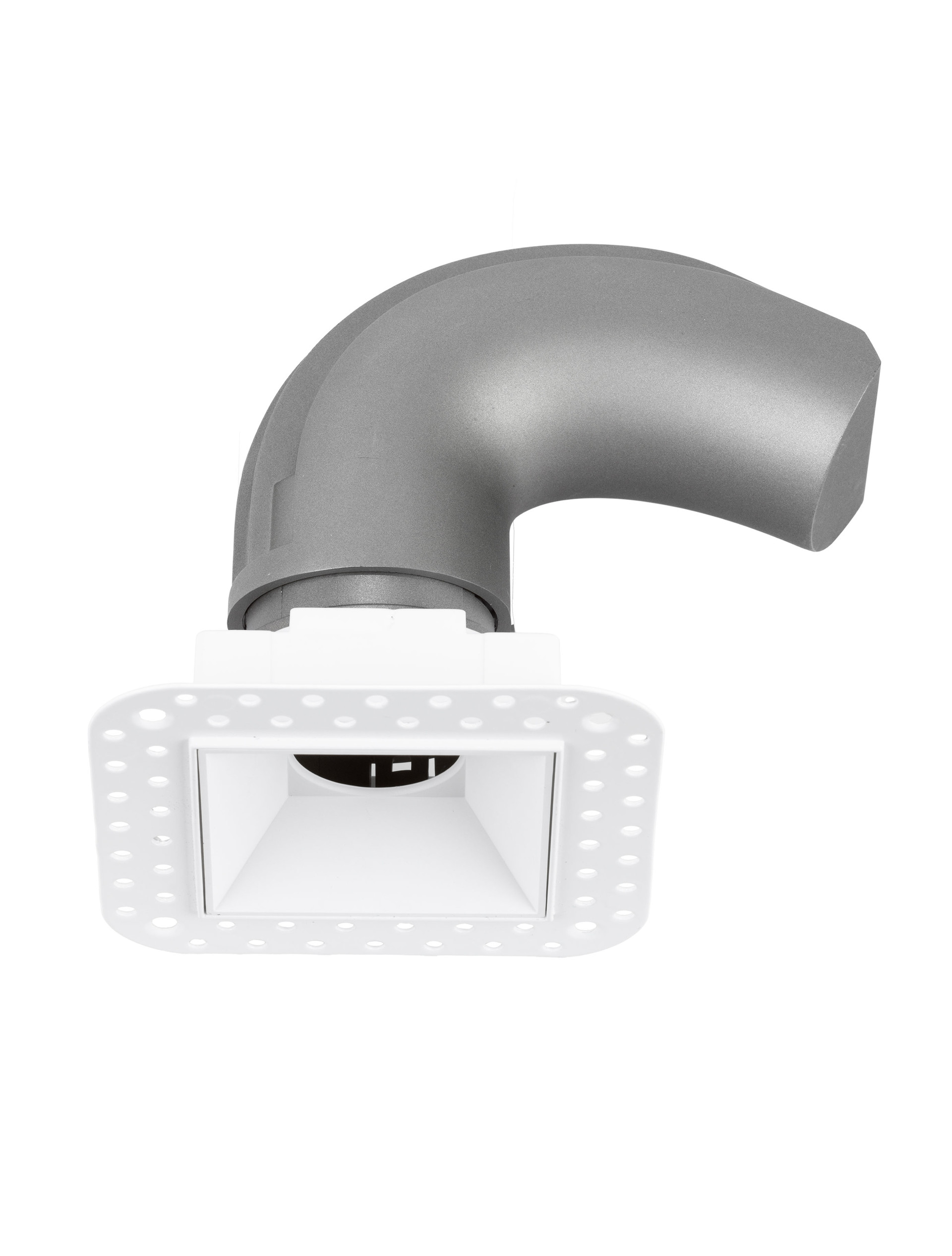

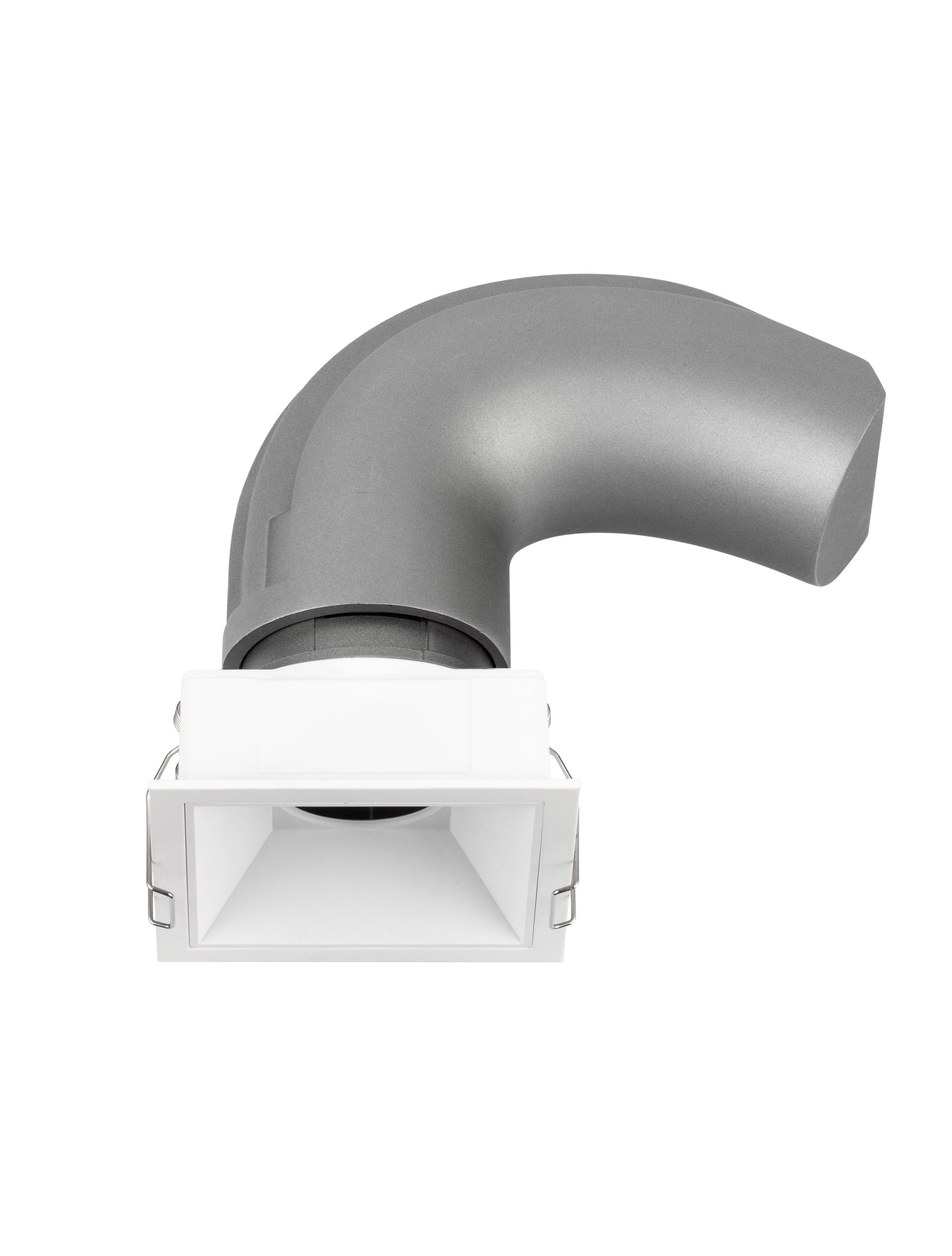

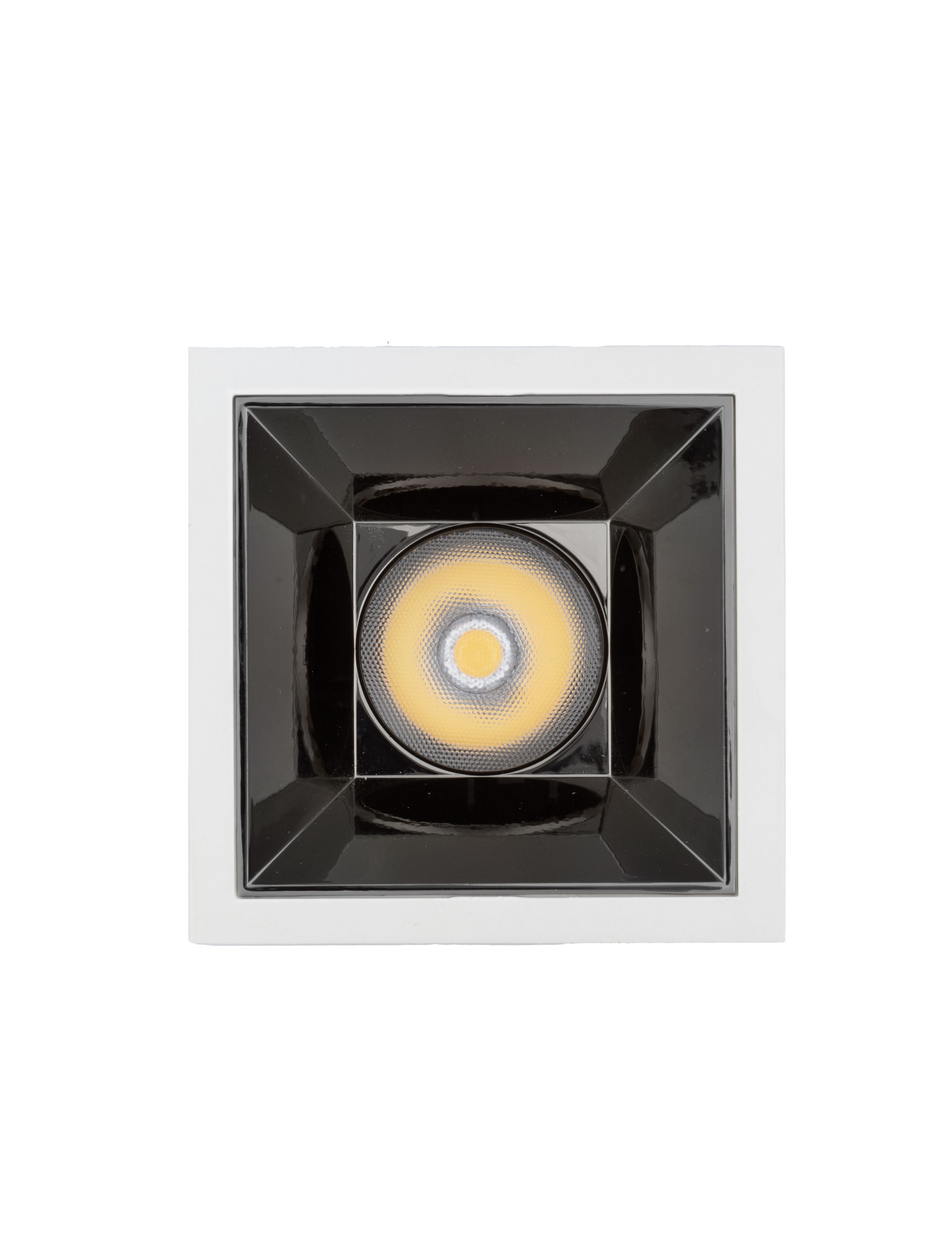

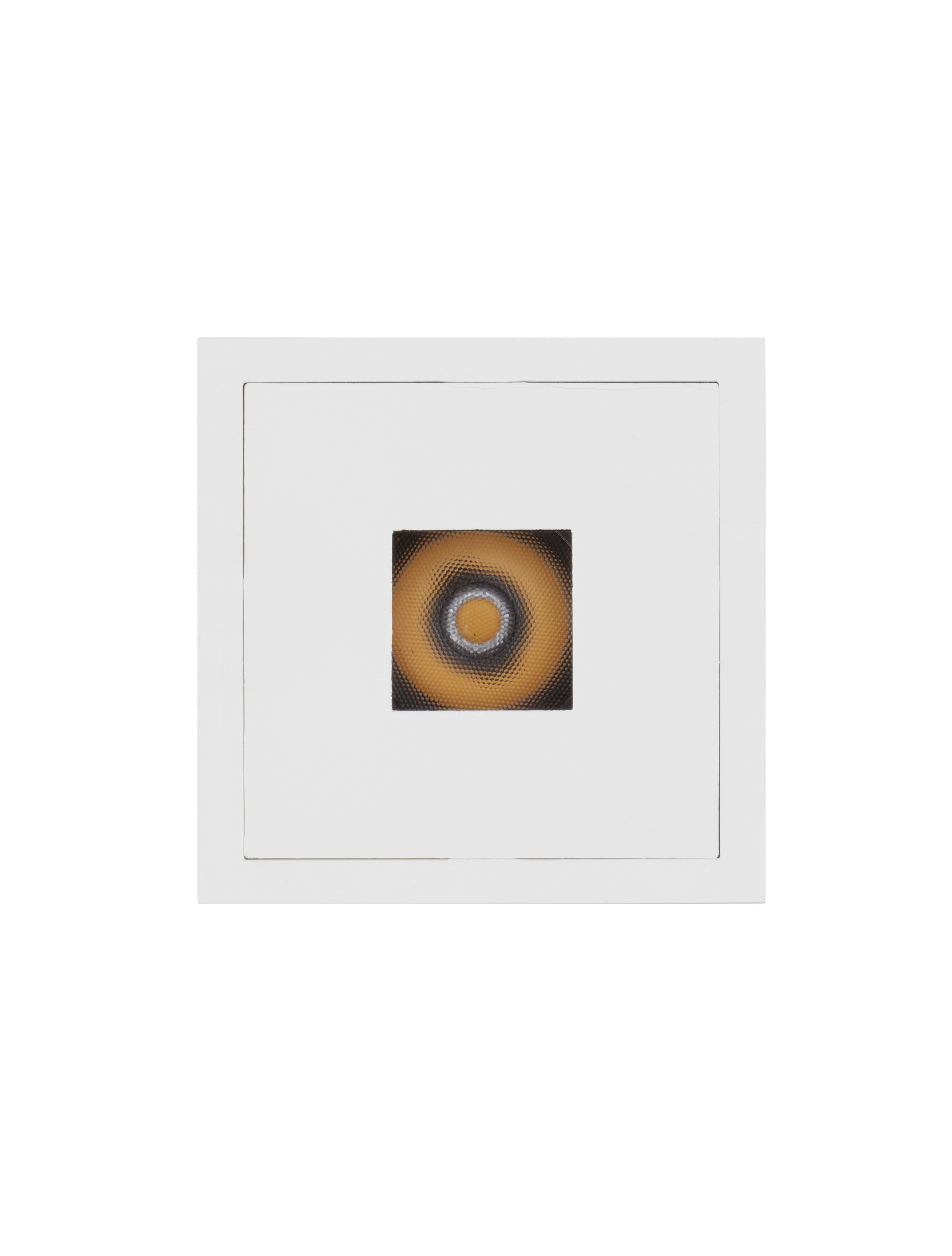

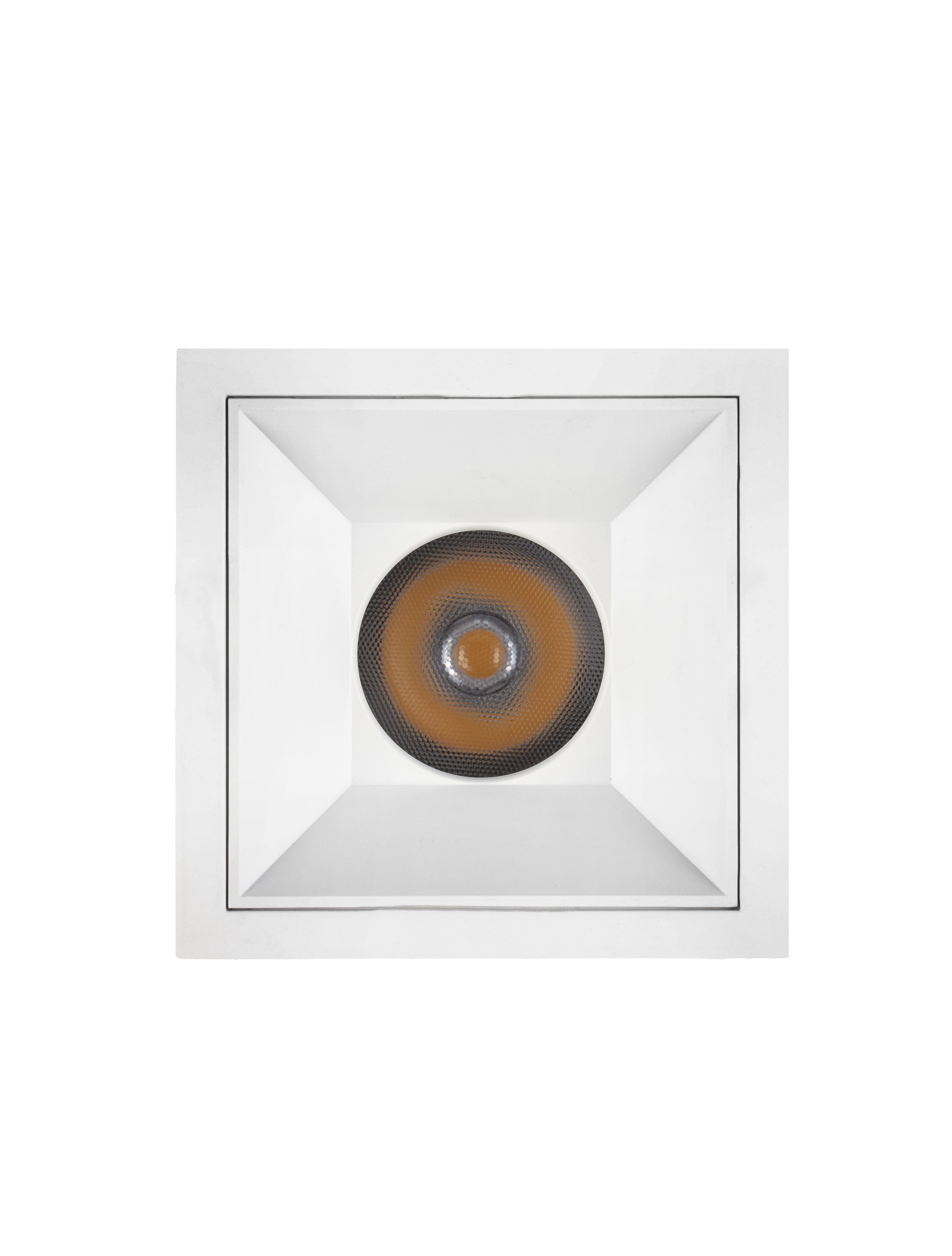

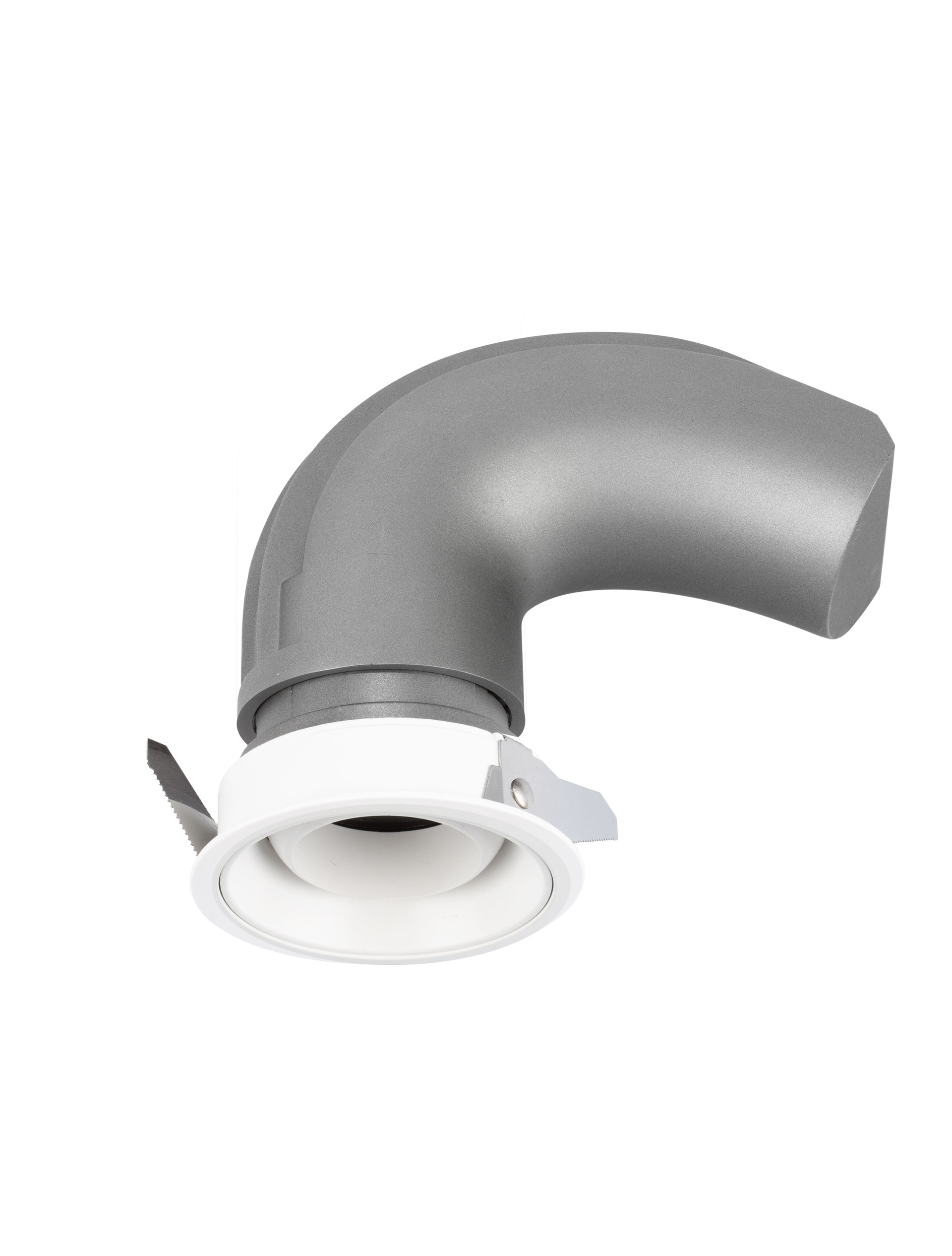

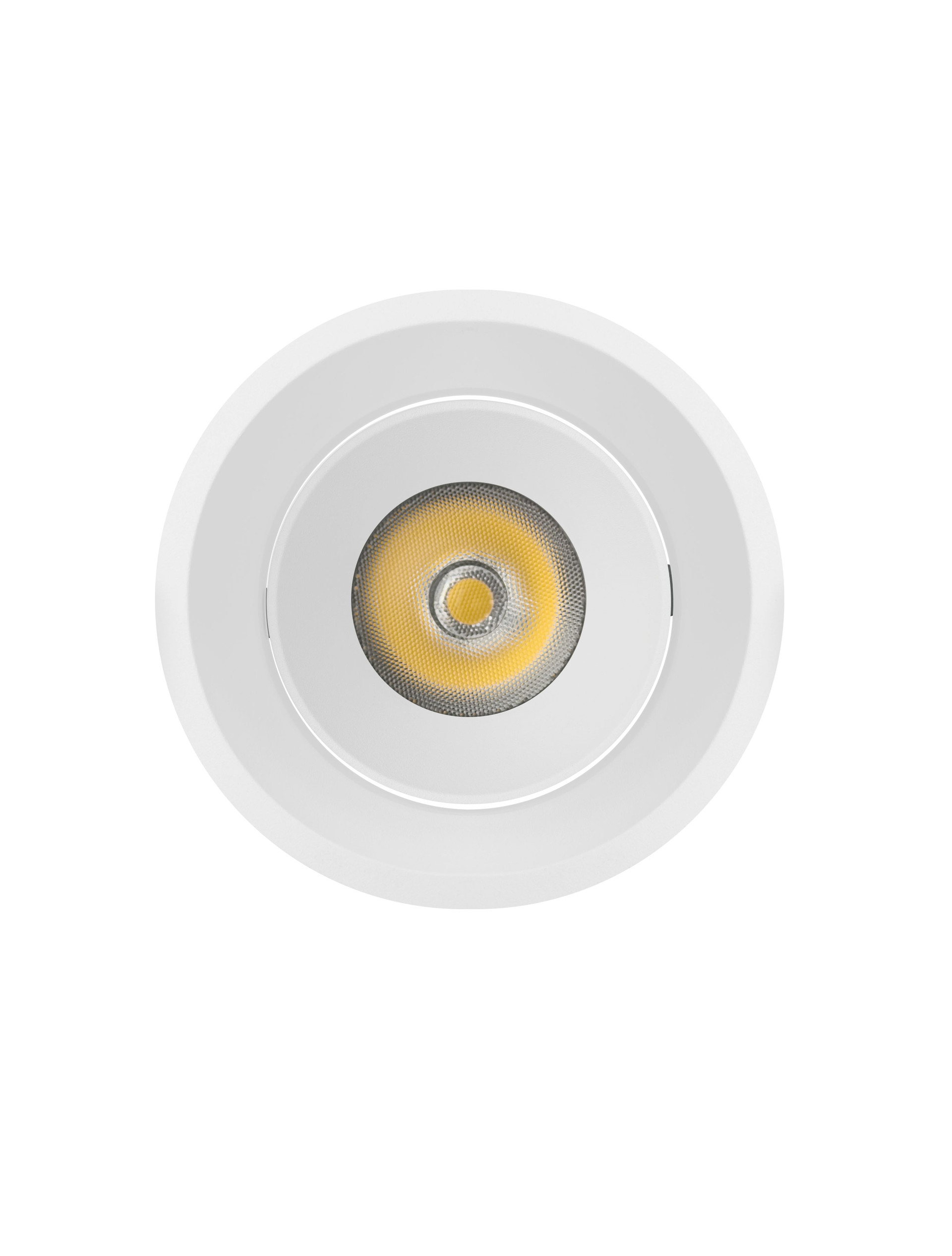

The One L 20-22 is a recessed downlight crafted from durable aluminium, designed for trimless ceiling installation. It offers adjustable beam angles for precise light direction and comes in black, white, chrome black, chrome silver, and chrome gold finishes. Suitable for both indoor and outdoor environments, it supports various dimming systems including Triac, DALI, Casambi, and 0-10V. Its compact cut-out sizes and robust construction make it ideal for architectural projects requiring flexible mounting and a clean, modern aesthetic.
Dimming Type
Triac, Dali, Casambi, 0-10V
Cut Out (cm)
7.5, 6.8, 7.5x7.5, 7.9
Dimmable
Yes
IP Rating
20, 54
Height (cm)
12.1, 12.3, 12.4, 13.5
Diameter (cm)
6.6, 7.5, 8, 8.2
Colour
Black, White, Chrome Black, Chrome Silver, Chrome Gold
Material
Aluminum
Adjustable
Yes
Cut Out (cm)
7.5, 6.8, 7.5x7.5, 7.9
IP Rating
20, 54
Mounting Type
Recessed, Trimless
Application Environment
Indoor, Outdoor
Power (W)
20
CCT (K)
2200
CRI
>90
Input Voltage (V)
36
Dimming Type
Triac, Dali, Casambi, 0-10V
Light Colour Designation
Warm White
Luminus Flux (lm)
2150
Beam Angle (°)
24, 30, 40, 55
Light Source
LED
SDCM
<3
UGR
<19
Current Type
DC
Input Current (mA)
500
Driver Included
Νο
Ambient Working Temp.
Max 45 °C
Warranty (Years)
5
Lifetime (Hours)
50000
Class
III
Certificates
CE, UKCA
