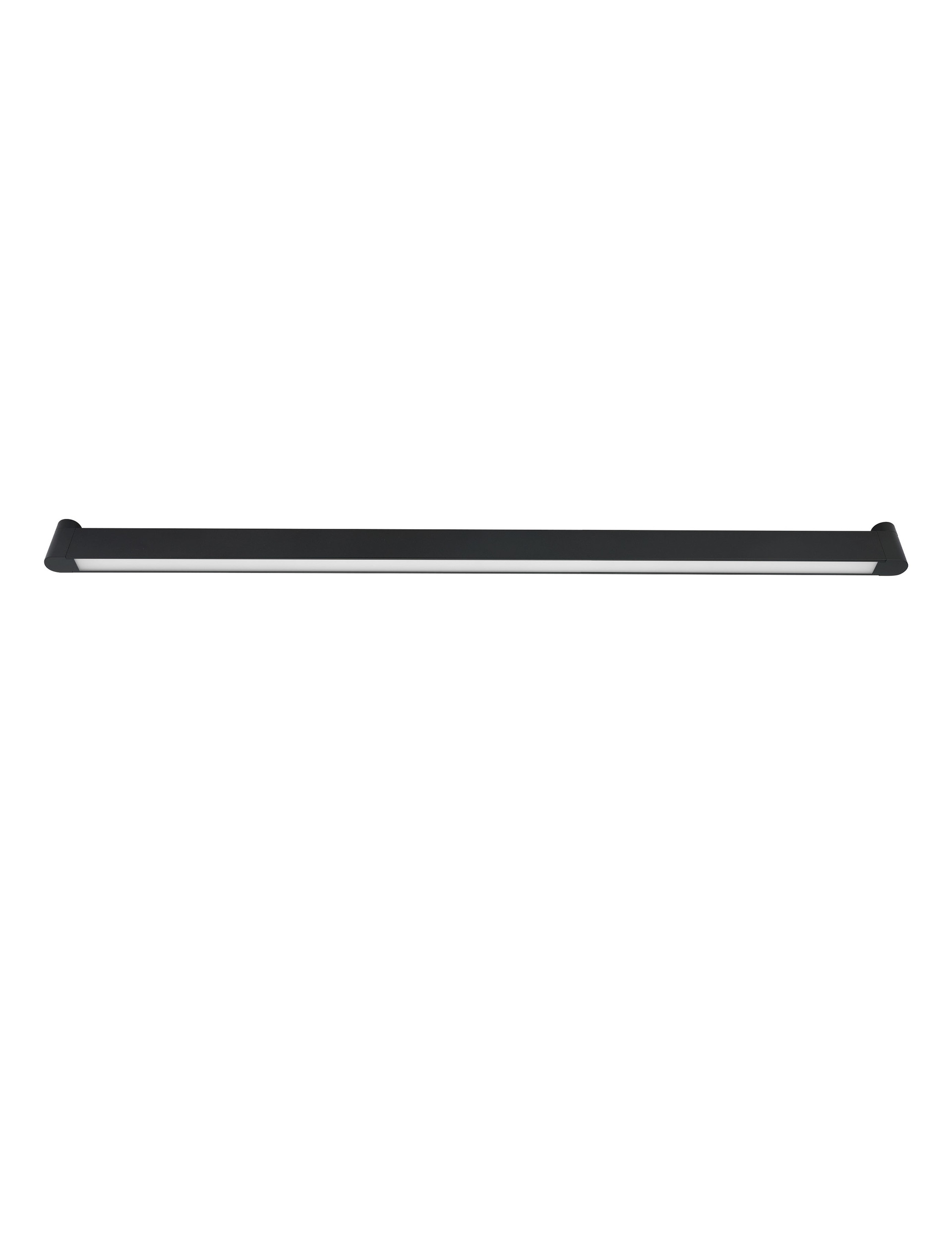

Symmetric B30-40W-Triac-A100
Black - 9680103

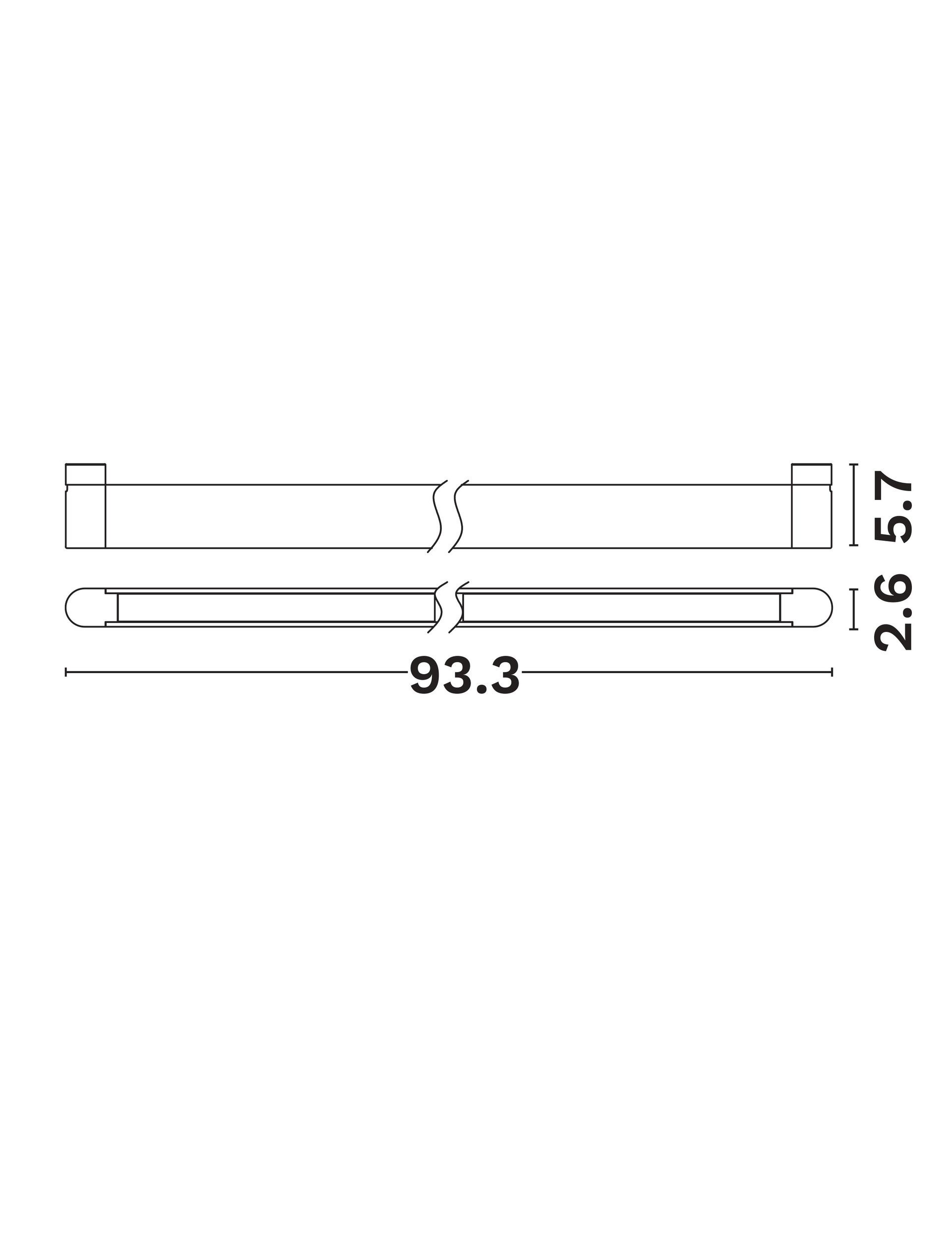

The Symmetric 40W LED module features a sleek black aluminum housing with a PC diffuser, designed for indoor architectural lighting applications. It offers Triac dimming compatibility for smooth light control and is surface-mounted for easy installation. Measuring 93.3 cm in length, 5.7 cm in height, and 2.6 cm in width, this module delivers high color rendering (CRI >90) and a wide 100° beam angle. Its robust design includes an IK rating of 3 and IP20 protection, suitable for indoor environments requiring reliable, dimmable LED lighting.
Dimming Type
Triac
Dimmable
Yes
IP Rating
20
Length (cm)
93.3
Height (cm)
5.7
Width (cm)
2.6
Led Module Replaceable
No
Net Weight (kg)
0.77
EAN
5212017451637
Colour
Black
Material
Aluminum
Diffuser
Pc
Adjustable
Νο
IP Rating
20
Mounting Type
Surface
IK Rating
3
Application Environment
Indoor
Mounting Location
Ceiling, Wall
Power (W)
40
CCT (K)
3000
CRI
>90
Dimming Type
Triac
Light Colour Designation
Warm White
Luminus Flux (lm)
1094
Luminous Efficacy (lm/w)
27.35
Beam Angle (°)
100
Light Source
LED
SDCM
<3
Current Type
DC
Warranty (Years)
3
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
