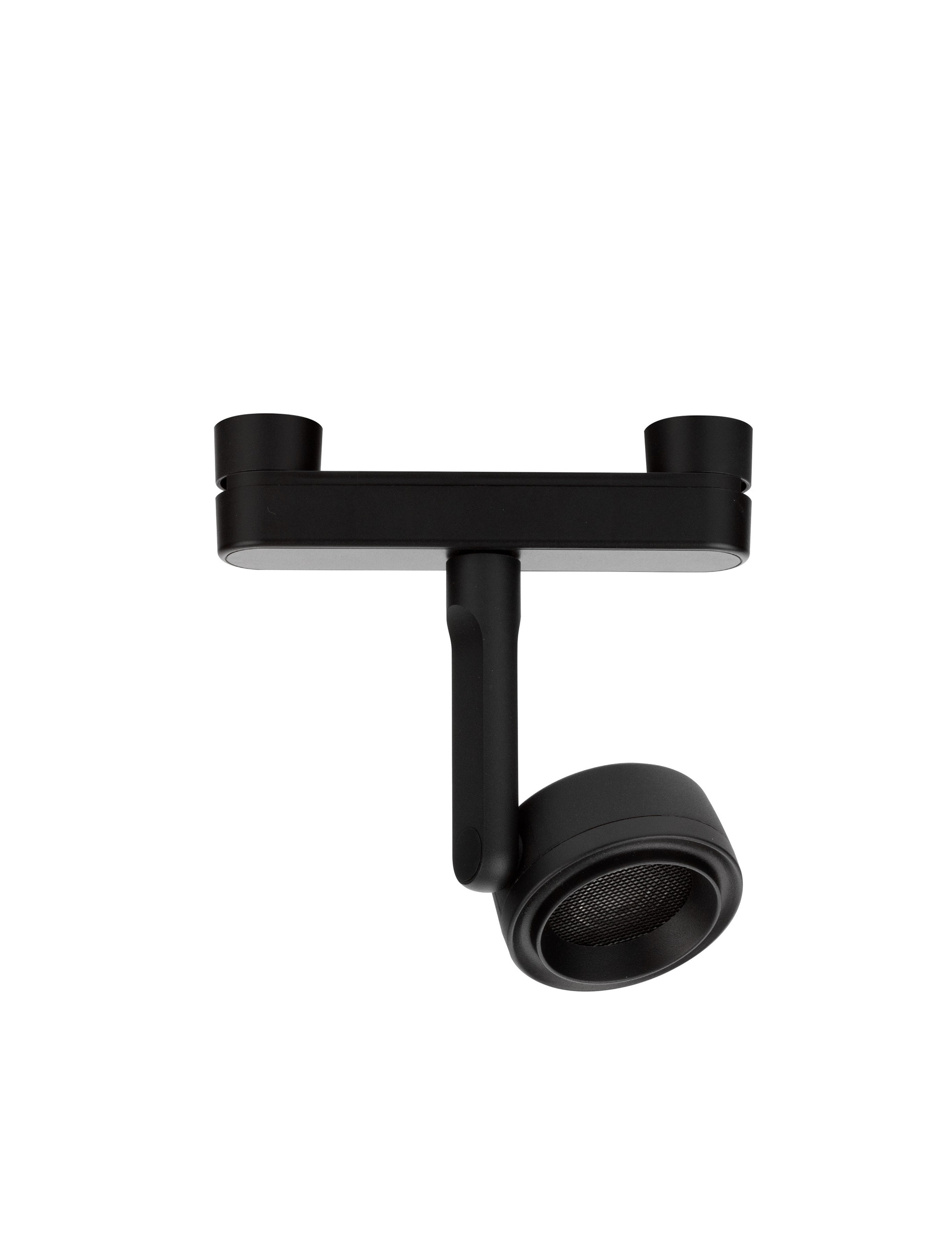

Symmetric B30-10W-Triac
Black - 9680110

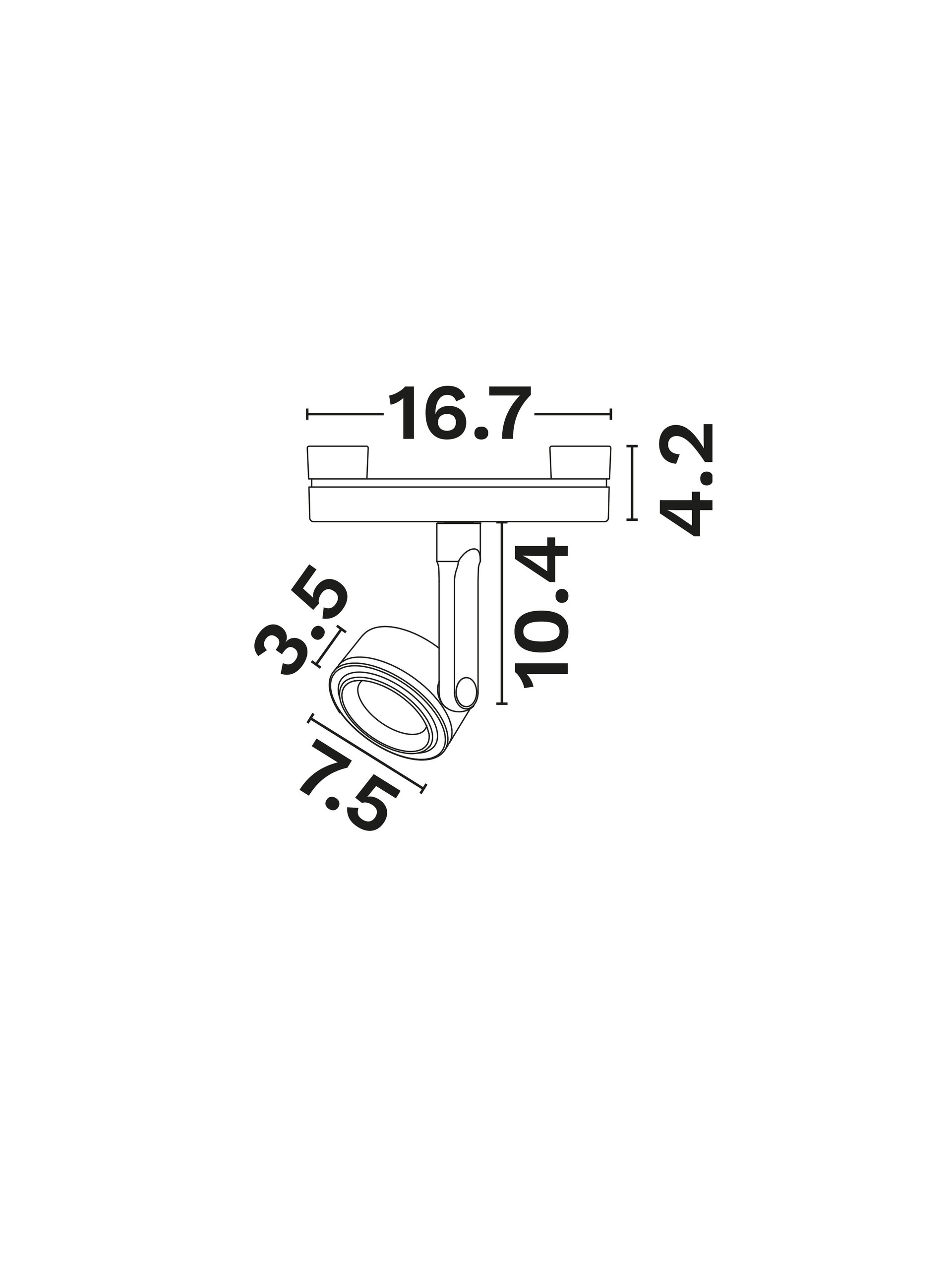

The Symmetric B30-10W-Triac is a compact, surface-mounted LED lighting module designed for indoor architectural applications. Finished in black aluminum, it features a 10W power output with Triac dimming compatibility for smooth light adjustment. Its 24° beam angle and high color rendering index (CRI >90) ensure quality illumination with minimal glare (UGR <10). Measuring 7.5 cm in length and width, and 3.5 cm in height, it offers a sleek, adjustable design with robust IK4 impact resistance, ideal for versatile lighting setups.
Dimming Type
Triac
Dimmable
Yes
IP Rating
20
Length (cm)
7.5
Height (cm)
3.5
Width (cm)
7.5
Led Module Replaceable
No
Net Weight (kg)
0.29
EAN
5212017451705
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Surface
IK Rating
4
Application Environment
Indoor
Mounting Location
Ceiling, Wall
Power (W)
10
CCT (K)
3000
CRI
>90
Dimming Type
Triac
Light Colour Designation
Warm White
Luminus Flux (lm)
359
Luminous Efficacy (lm/w)
35.9
Beam Angle (°)
24
Light Source
LED
SDCM
<3
UGR
<10
Current Type
DC
Warranty (Years)
3
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
