Symmetric B27-11W-Dali-A10-55
Black - 9680204

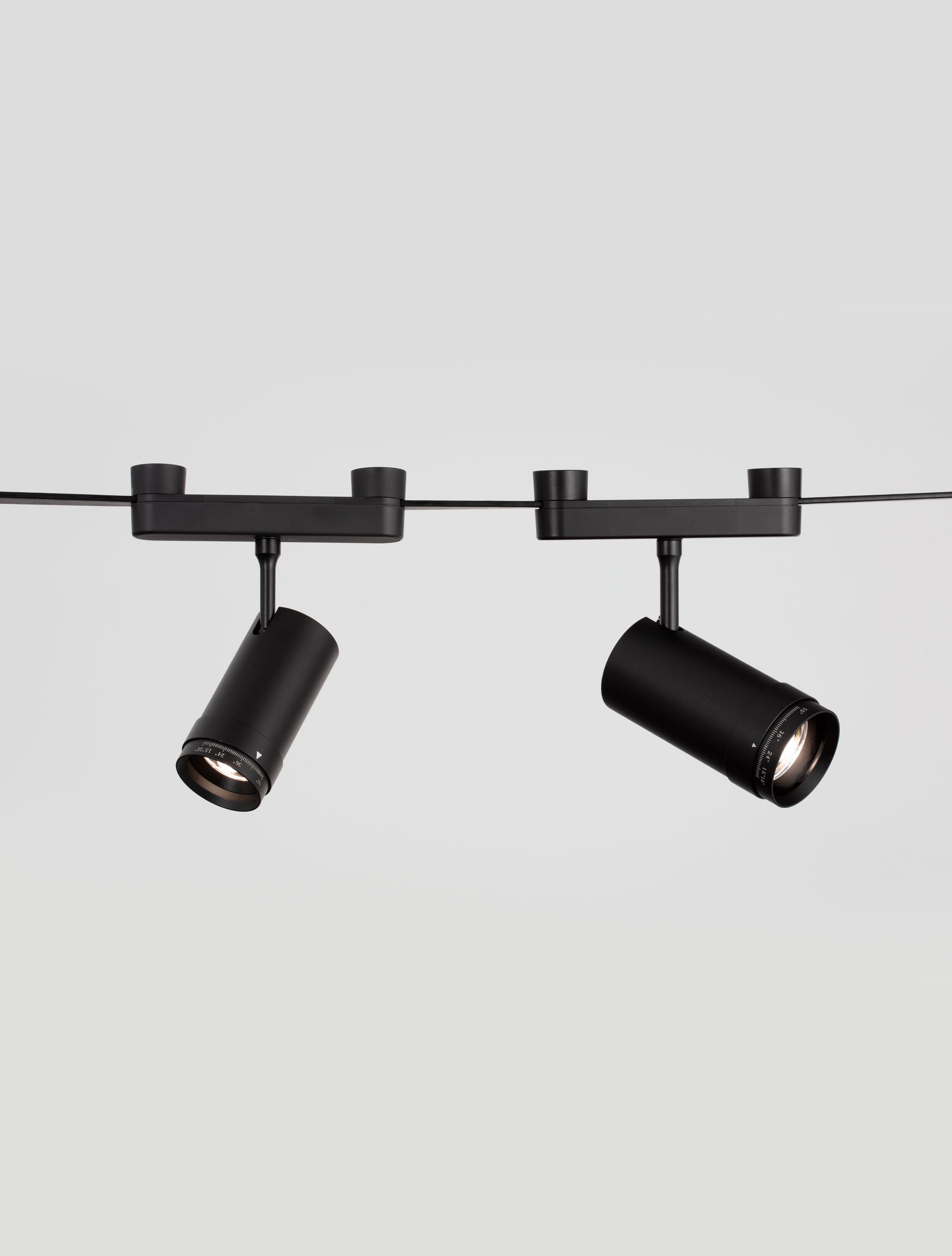

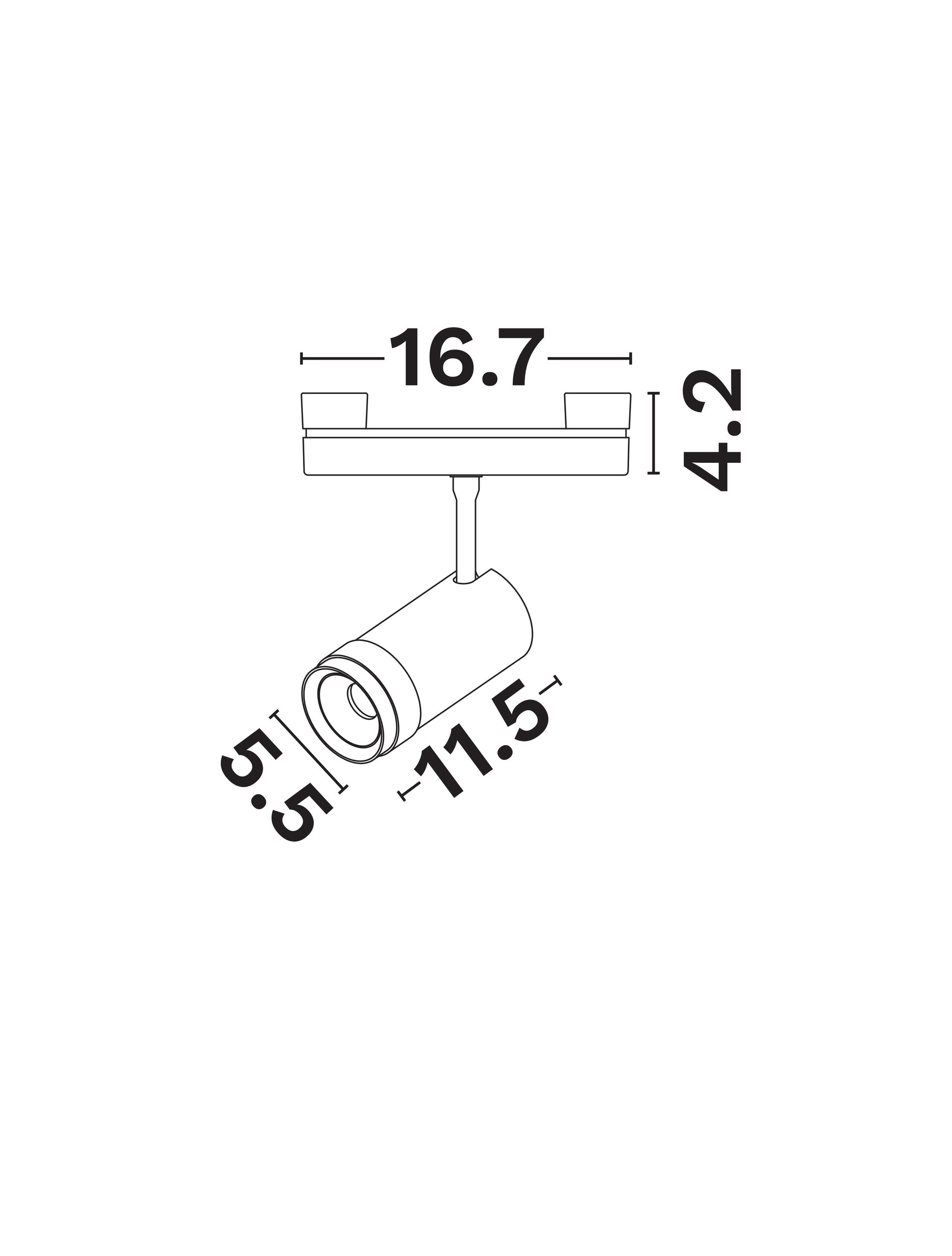

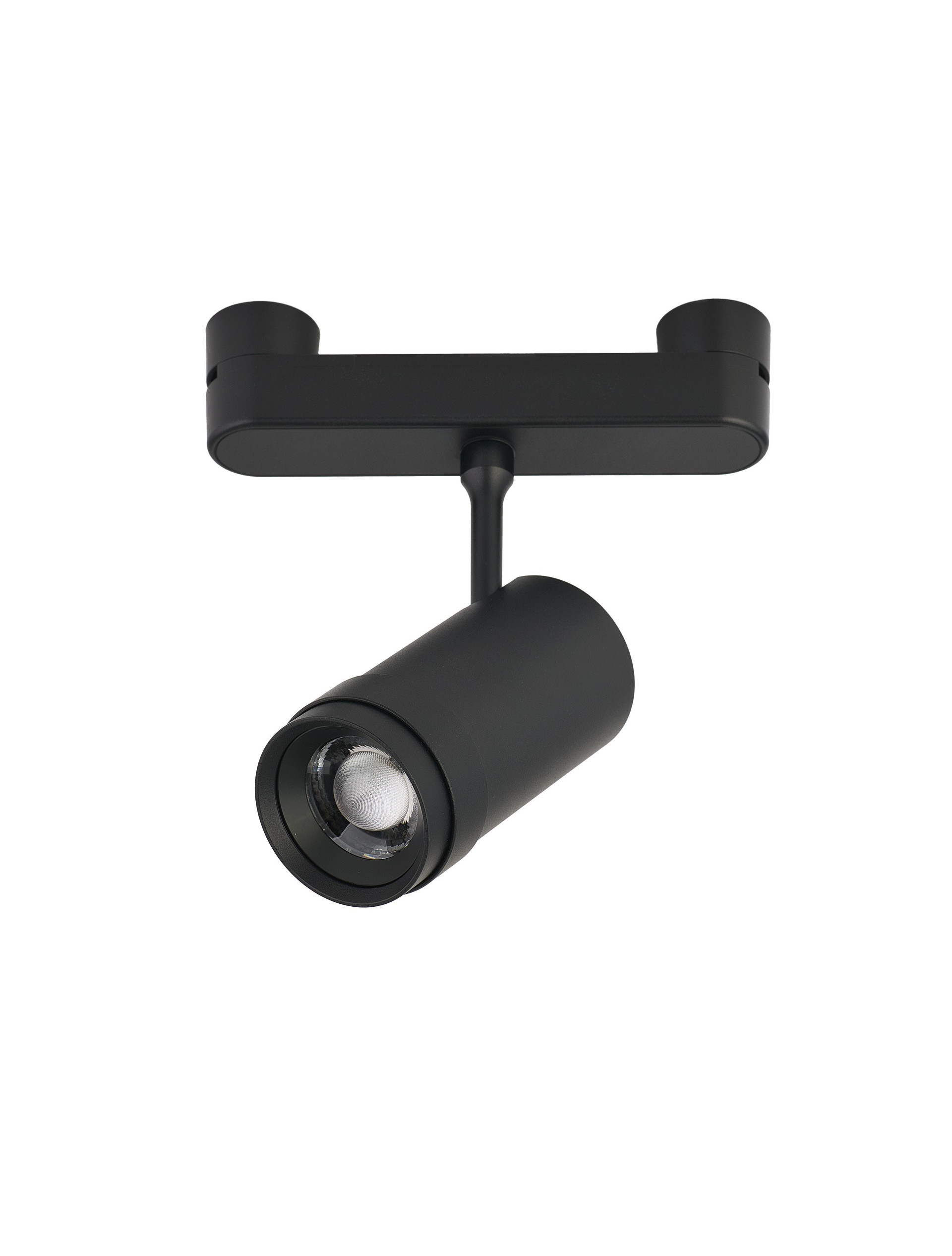

This Symmetric LED lighting module features a sleek black aluminum body designed for indoor architectural use. It delivers 11W of power with a high CRI over 90, ensuring excellent color rendering. The module supports Dali dimming and includes a CCT selector for versatile lighting control. Its adjustable beam angles of 10° and 55° allow precise light distribution. Compact and robust, it measures 11.5 cm in height and 5.5 cm in width and length, with an IK rating of 4 for impact resistance. Surface mounting makes it suitable for various indoor environments requiring efficient, customizable lighting.
CCT Min (K)
2700
CCT Max (K)
6000
CCT Selector
Dali
Dimming Type
Dali
Dimmable
Yes
IP Rating
20
Length (cm)
5.5
Height (cm)
11.5
Width (cm)
5.5
Led Module Replaceable
No
Net Weight (kg)
0.31
EAN
5212017470713
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Surface
IK Rating
4
Application Environment
Indoor
Mounting Location
Ceiling, Wall
Power (W)
11
CCT (K)
Tunable White
CCT Min (K)
2700
CCT Max (K)
6000
CRI
>90
CCT Selector
Dali
Dimming Type
Dali
Light Colour Designation
Warm White - Cool White
Luminus Flux (lm)
451
Luminous Efficacy (lm/w)
41
Beam Angle (°)
10, 55
Light Source
LED
UGR
<10
Current Type
DC
Warranty (Years)
3
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
