Symmetric B27-19W-Dali

Black - 9680205

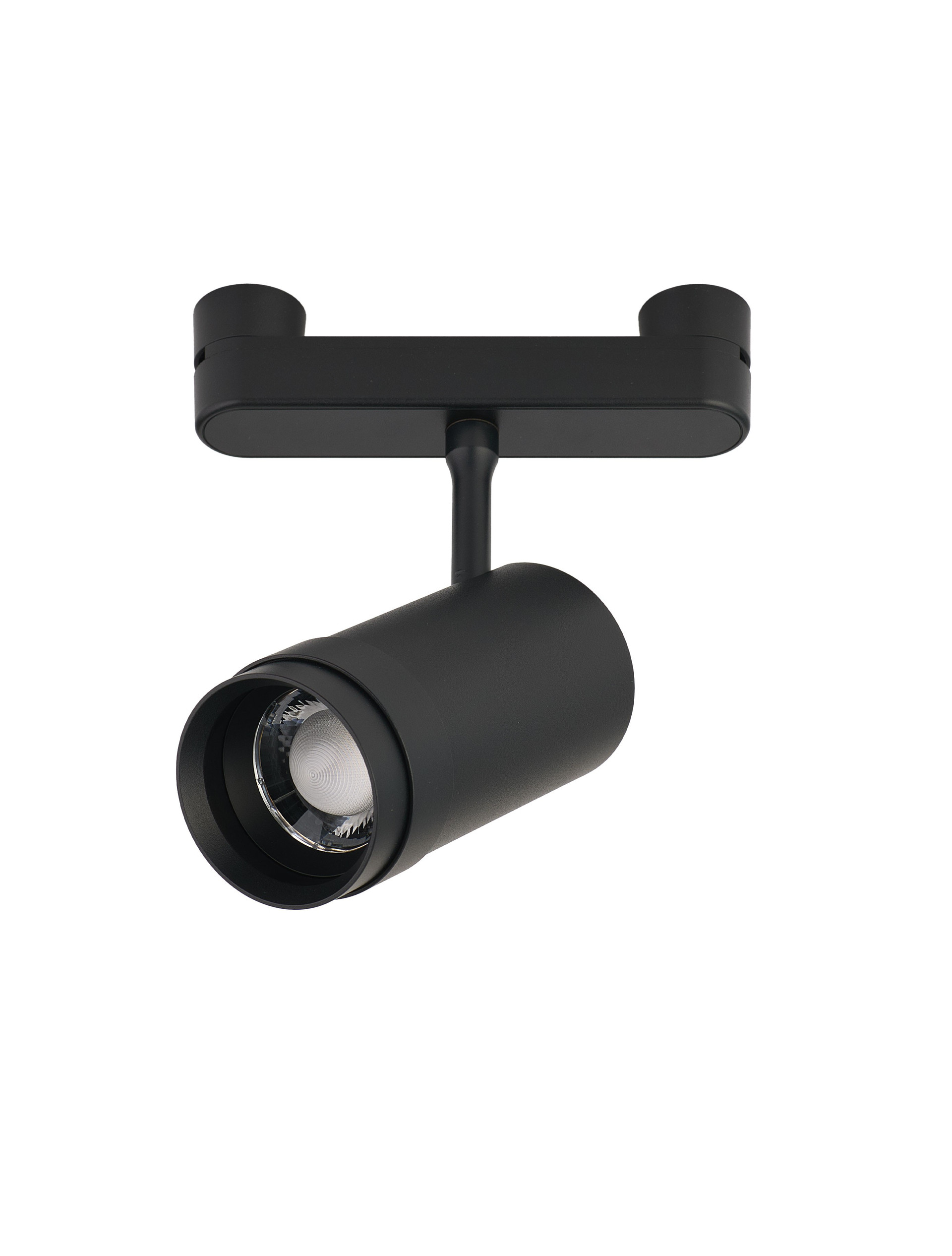

The Symmetric B27-19W-Dali is a compact LED lighting module designed for indoor architectural applications. Featuring a sleek black aluminum body, it measures 6.5 cm in width and length, and 13.5 cm in height. This surface-mounted module delivers 19W of power with a high color rendering index (CRI >90) and offers DALI dimming control for flexible lighting scenes. Its adjustable beam angles of 10° and 55° allow precise light distribution, while the low glare rating (UGR <10) ensures visual comfort. Rated IP20 and IK4, it suits protected indoor environments requiring reliable, efficient illumination.

Assembly InstructionsEnergy LabelTechnical DatasheetLDT - IES
View in catalogue
CCT Min (K)
2700
CCT Max (K)
6000
CCT Selector
Dali
Dimming Type
Dali
Dimmable
Yes
IP Rating
20

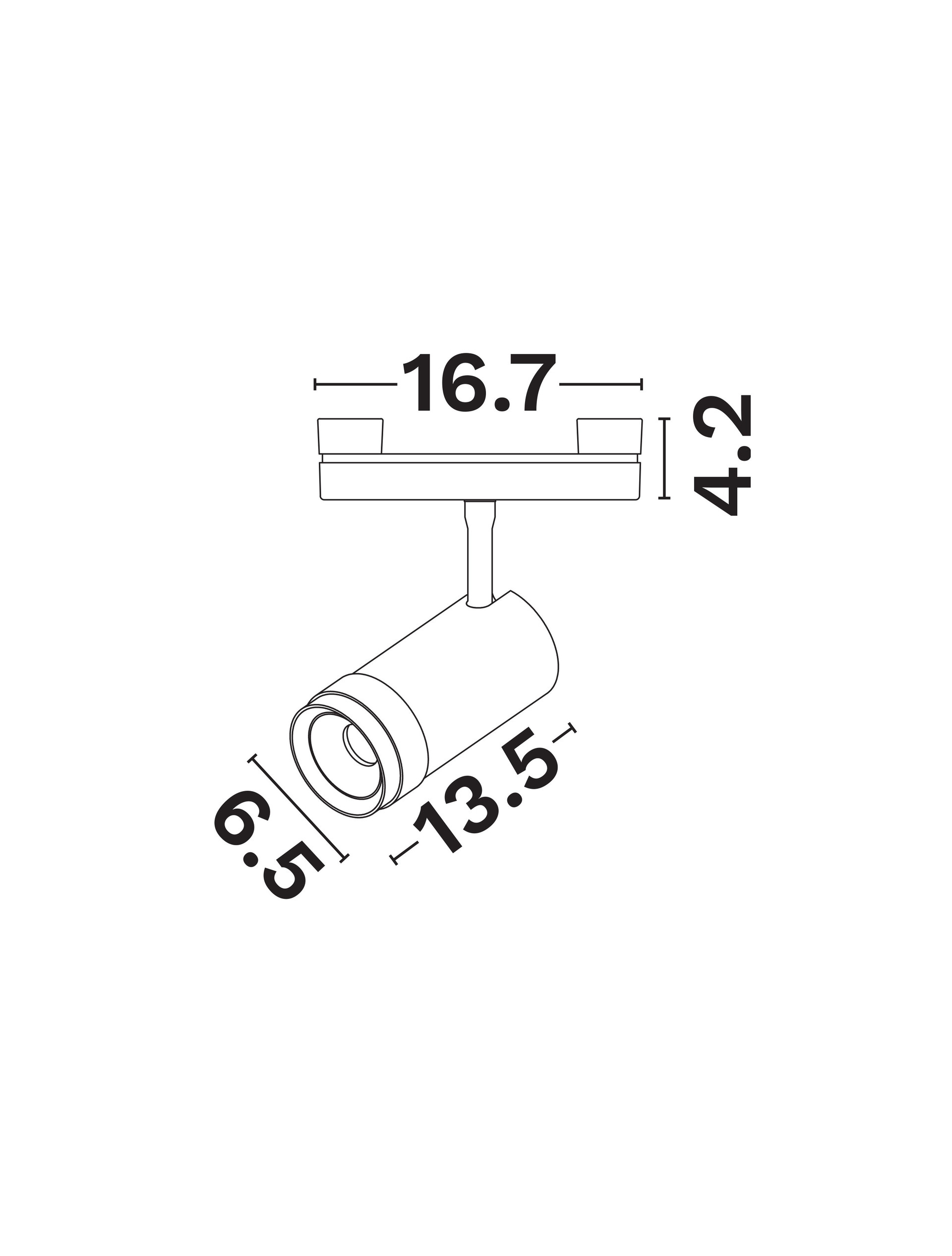

Length (cm)
6.5
Height (cm)
13.5
Width (cm)
6.5
Led Module Replaceable
No
Net Weight (kg)
0.45
EAN
5212017470720
