Symmetric B27-13W-Dali

Black - 9680206

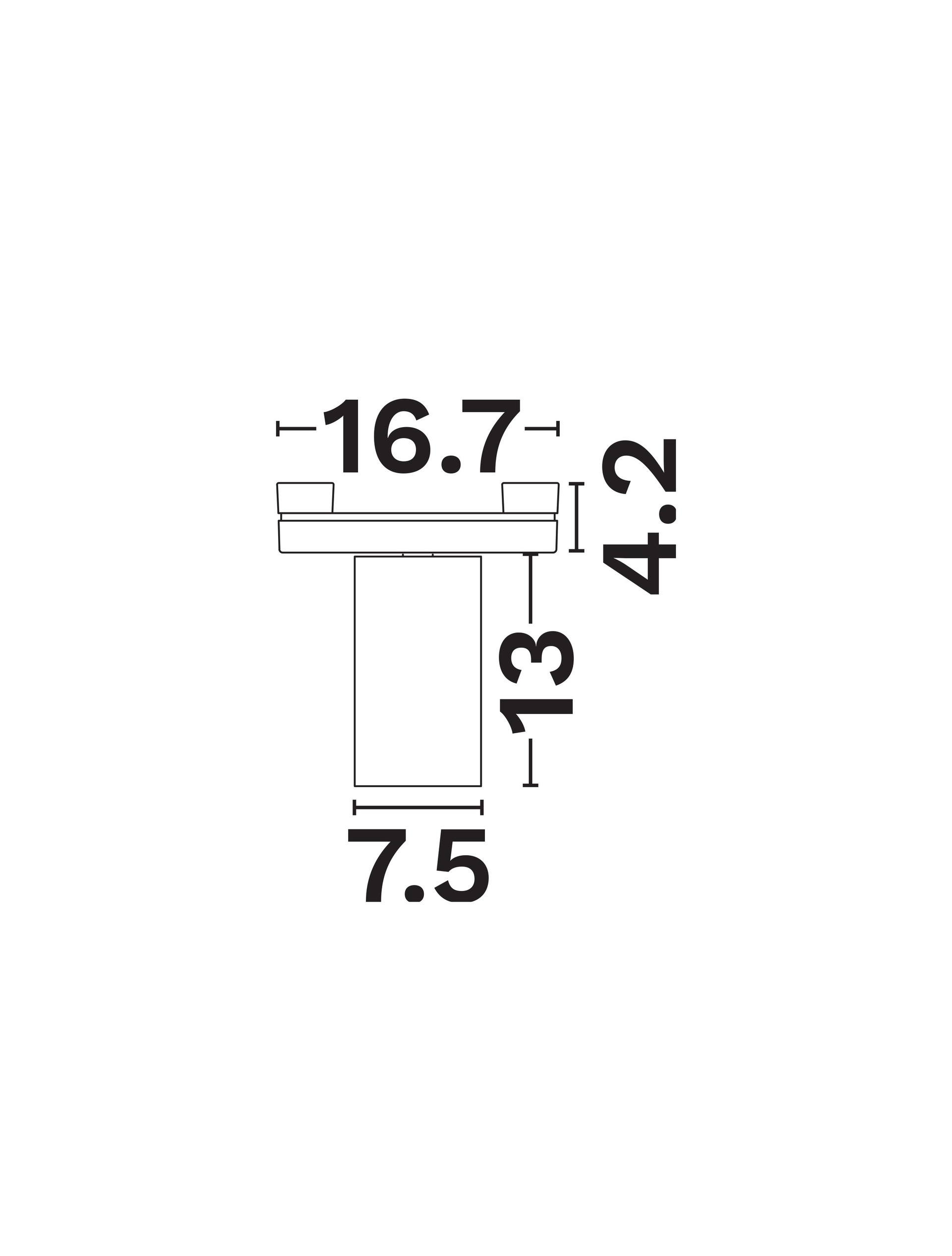

The Symmetric B27-13W-Dali is a surface-mounted LED lighting module crafted from aluminum in a sleek black finish. Delivering 13W power with a high CRI above 90, it ensures excellent color rendering for indoor architectural environments. Featuring Dali dimming compatibility and a fixed 30° beam angle, this module offers precise lighting control with low glare (UGR <10). Compact dimensions of 7.5 cm width and length, and 13 cm height make it suitable for various indoor applications requiring quality, efficient illumination.

Assembly InstructionsEnergy LabelTechnical DatasheetLDT - IES
View in catalogue
CCT Min (K)
2700
CCT Max (K)
6000
CCT Selector
Dali
Dimming Type
Dali
Dimmable
Yes
IP Rating
20
Length (cm)
7.5
Height (cm)
13
Width (cm)
7.5
Led Module Replaceable
No
Net Weight (kg)
0.33
EAN
5212017470737
