Symmetric B27-11W-Dali-A24
Black - 9680208

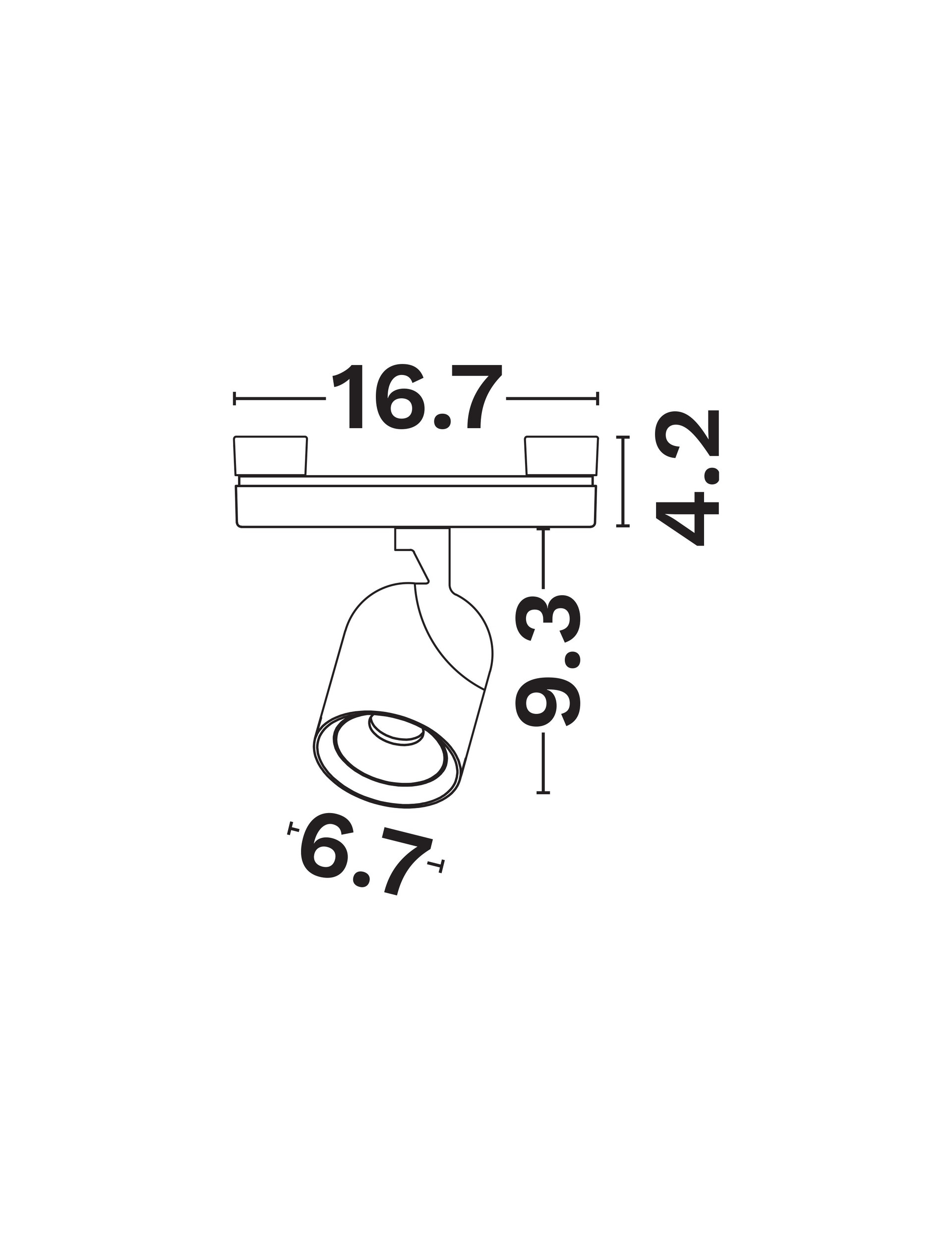

This black Symmetric LED module offers 11W power with Dali dimming control, ideal for indoor architectural lighting. Crafted from aluminum, it features a compact 6.7 x 6.7 x 9.3 cm design for surface mounting. The module delivers a precise 24° beam angle with high color rendering (CRI >90) and low glare (UGR <10). Adjustable and dimmable, it ensures versatile lighting solutions with reliable performance and durability (IK4 rating). Perfect for refined indoor environments requiring efficient, controllable illumination.
CCT Min (K)
2700
CCT Max (K)
6000
CCT Selector
Dali
Dimming Type
Dali
Dimmable
Yes
IP Rating
20
Length (cm)
6.7
Height (cm)
9.3
Width (cm)
6.7
Led Module Replaceable
No
Net Weight (kg)
0.35
EAN
5212017470751
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Surface
IK Rating
4
Application Environment
Indoor
Mounting Location
Ceiling, Wall
Power (W)
11
CCT (K)
Tunable White
CCT Min (K)
2700
CCT Max (K)
6000
CRI
>90
CCT Selector
Dali
Dimming Type
Dali
Light Colour Designation
Warm White - Cool White
Luminus Flux (lm)
525
Luminous Efficacy (lm/w)
47.73
Beam Angle (°)
24
Light Source
LED
SDCM
<3
UGR
<10
Current Type
DC
Warranty (Years)
3
Lifetime (Hours)
30000
Class
III
Certificates
CE, UKCA
