PULSAR
Gray - 812104
The Pulsar is a robust outdoor LED step light designed for wall surface mounting. Featuring a dark gray ABS body and an acrylic diffuser, it delivers warm to neutral white illumination with a high color rendering index above 80. This compact fixture provides 480 lumens of light output with selectable color temperatures via dip switch. Its IP54 rating ensures reliable performance in outdoor environments. The integrated LED module is non-replaceable, optimized for energy efficiency and long service life. Ideal for enhancing safety and aesthetics on steps and pathways, this fixture combines durability with modern lighting technology.
CCT Selector
Dip Switch
IP Rating
54

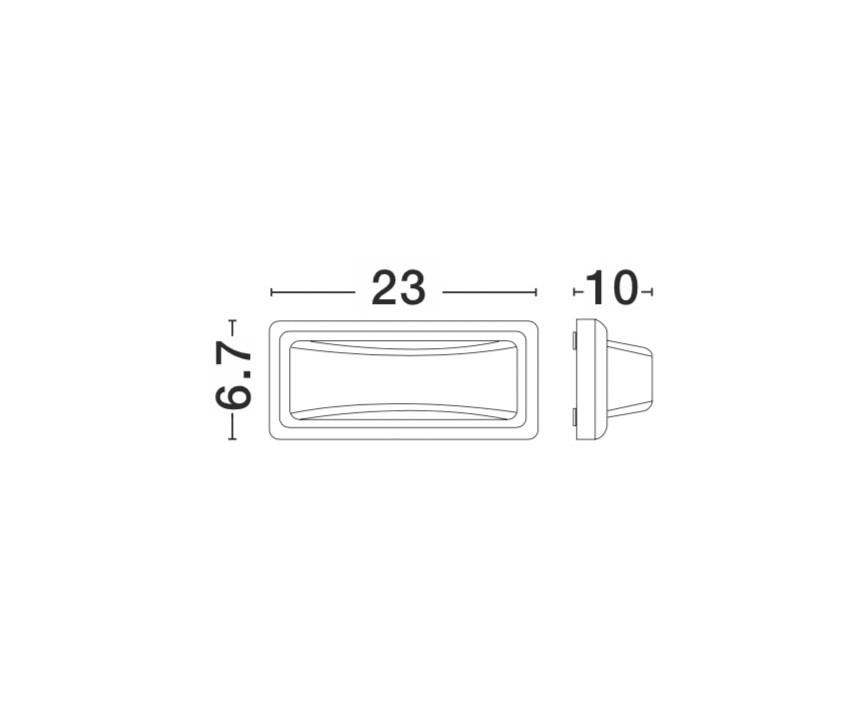

Length (cm)
23
Height (cm)
6.7
Width (cm)
10
Led Module Replaceable
No
Net Weight (kg)
0.335
Gross Weight (kg)
0.365
Bulb Included
Yes
Colour
Gray
Colour Description
Dark Gray
Material
Polycarbonate
Material Description
Acrylic, ABS
Diffuser
Acrylic
Adjustable
Νο
IP Rating
54
Mounting Type
Surface
Application Environment
Outdoor
Mounting Location
Wall
Power (W)
6
CCT (K)
3000, 4000, 6500
CRI
>80
Input Voltage (V)
220-240
CCT Selector
Dip Switch
Light Colour Designation
Warm White-Neutral White
Luminus Flux (lm)
480
Light Source
LED
Current Type
AC
Mains Frequency (Hz)
50/60
Ambient Working Temp.
Max 45 °C
Warranty (Years)
3
Class
II
Certificates
CE, UKCA
