Atrium W30-3W-Dali-Round
White - 9232242

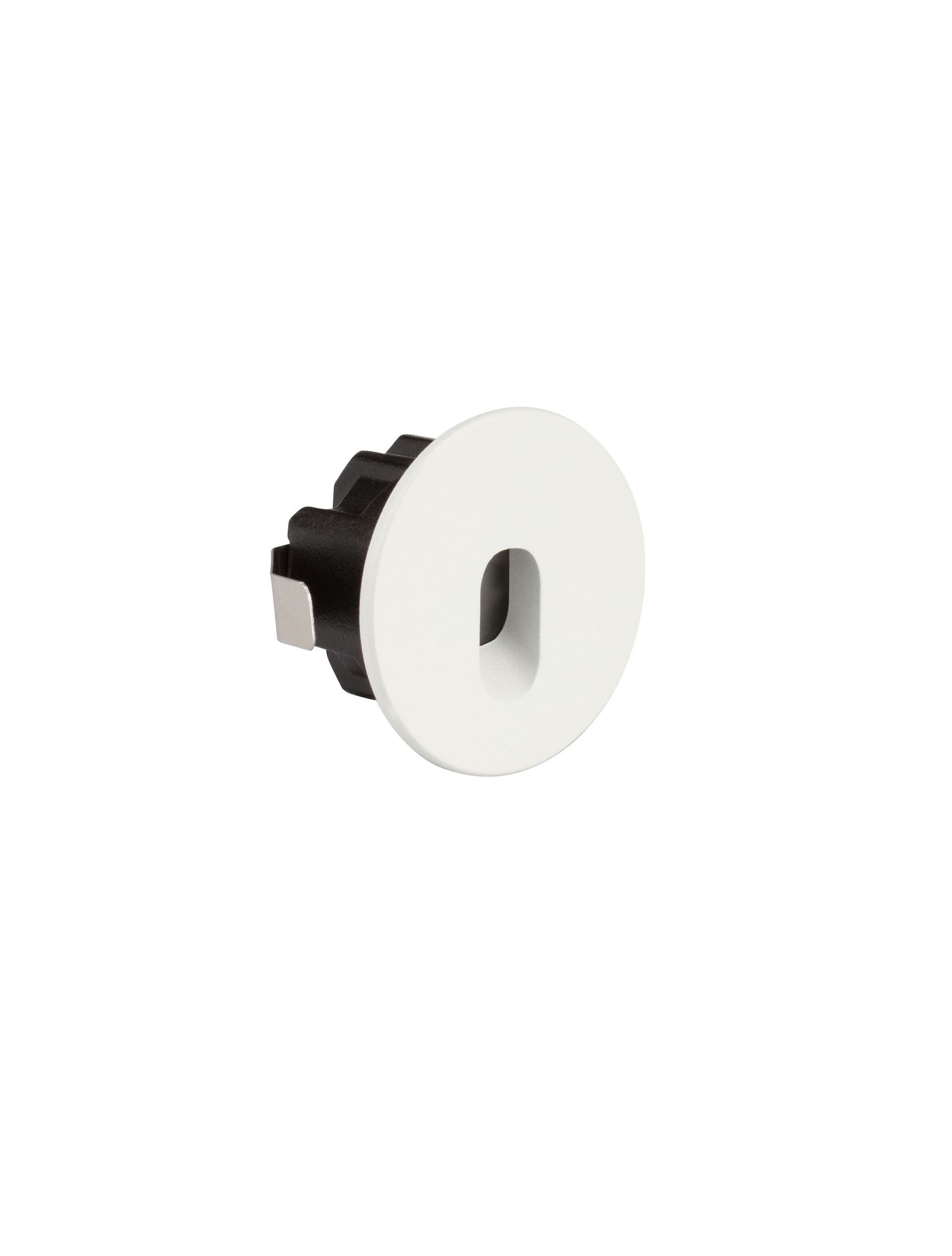

The Atrium W30-3W-Dali-Round is a recessed indoor steplight designed for architectural applications. It features a compact 4.2 cm diameter and 2.6 cm height aluminum body finished in white. The fixture includes a 3W LED light source with a warm 3000K color temperature and a 60° beam angle, providing subtle illumination with low glare (UGR <19). DALI dimming compatibility allows smooth light adjustment. Its IP20 and IK03 ratings ensure protection suitable for indoor use. Accessories like the Atrium B-Black Box Metal-V1 and DALI drivers enhance installation flexibility.
Dimming Type
Dali

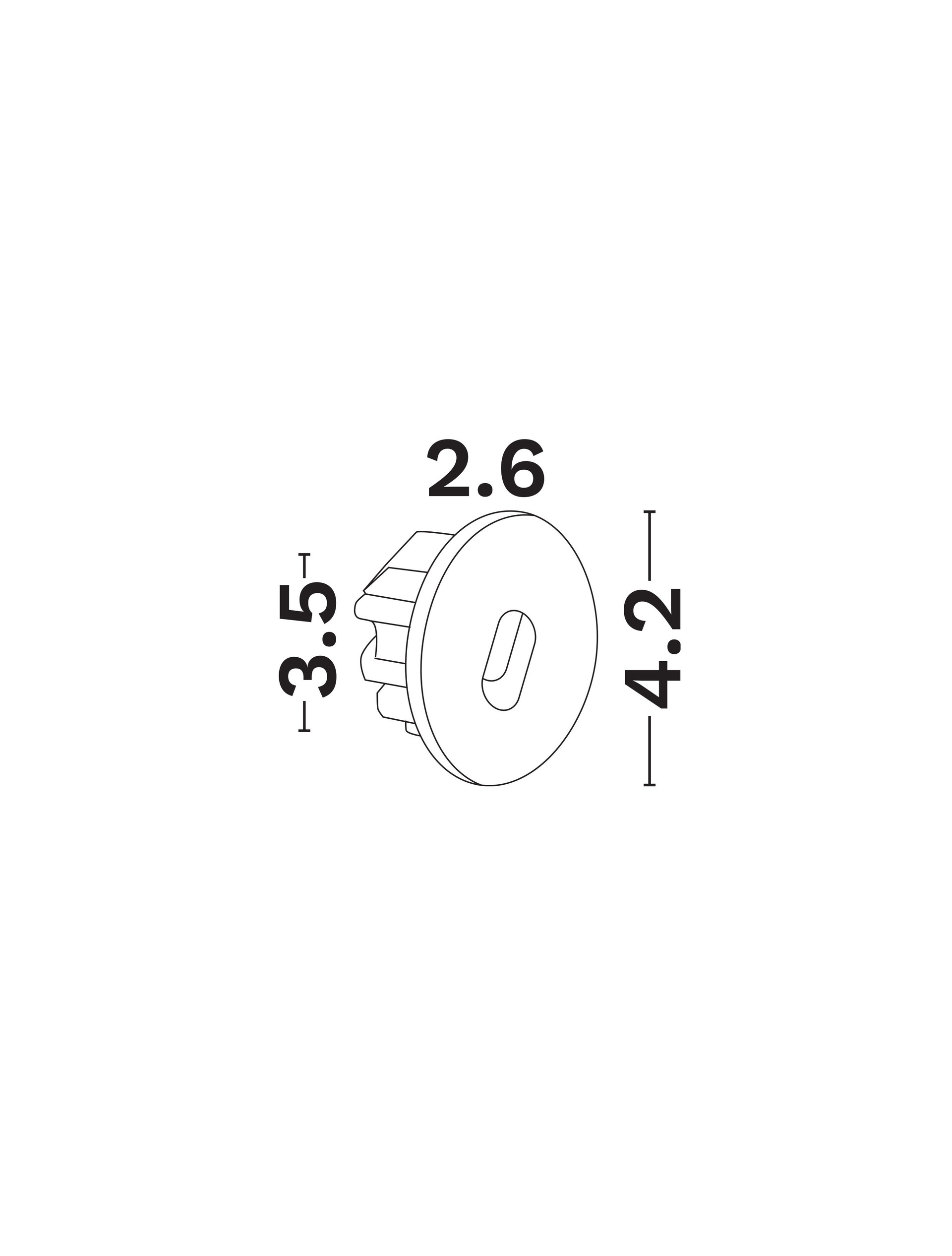

Cut Out (cm)
3.5
Dimmable
Yes
IP Rating
20
Height (cm)
2.6
Width (cm)
2.6
Diameter (cm)
4.2
Led Module Replaceable
No
EAN
5212017482594
Colour
White
Material
Aluminum
Adjustable
Νο
Cut Out (cm)
3.5
IP Rating
20
Mounting Type
Recessed
IK Rating
3
Application Environment
Indoor
Mounting Location
Wall
Power (W)
3
CCT (K)
3000
CRI
>80
Input Voltage (V)
220-240
Dimming Type
Dali
Light Colour Designation
Warm White
Luminus Flux (lm)
33
Luminous Efficacy (lm/w)
11
Beam Angle (°)
60
Light Source
LED
UGR
<19
Current Type
AC
Input Current (mA)
500
Driver Included
Yes
Energy Class
G
Warranty (Years)
2
Lifetime (Hours)
20000
Class
II
Certificates
CE, UKCA
