Buxton Magnetic B30-10W-Triac-A35
Black - 9136168
The Buxton Magnetic B30-10W-Triac-A35 is a black LED lighting module designed for indoor architectural applications. It features a 10W power rating with Triac dimming capability and an adjustable 35° beam angle for versatile lighting control. Constructed from durable aluminum, it measures 32.5 cm in length, 24.5 cm in width, and 15.1 cm in height. This module offers a high color rendering index (CRI >90) and low glare (UGR <19), ensuring quality light output with excellent color fidelity. Its IP20 and IK3 ratings make it suitable for indoor environments where moderate protection is required.
Dimming Type
Triac
Dimmable
Yes
IP Rating
20

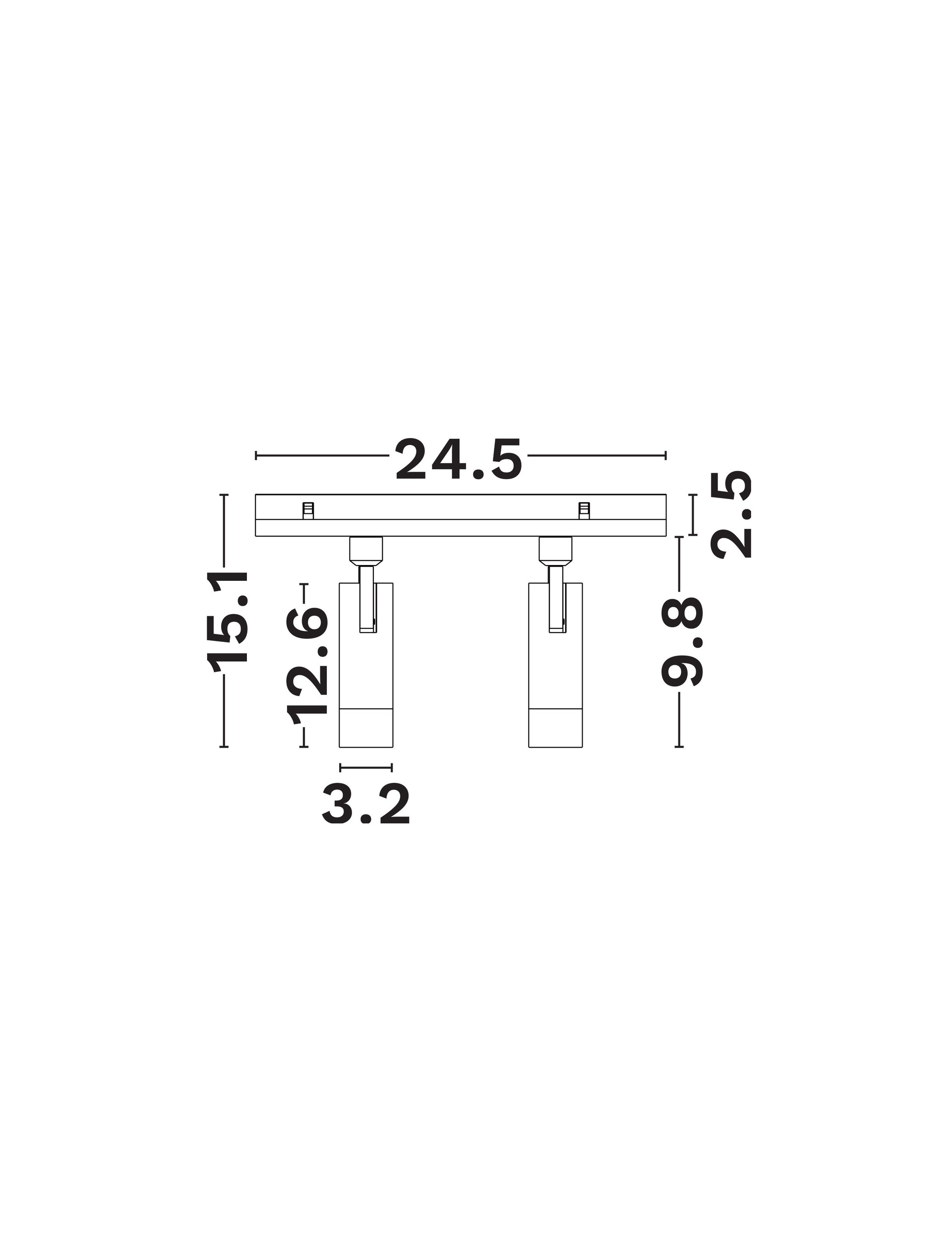

Length (cm)
32.5
Height (cm)
15.1
Width (cm)
24.5
Led Module Replaceable
No
Net Weight (kg)
0.53
Gross Weight (kg)
58
EAN
5212017444202
Colour
Black
Material
Aluminum
Adjustable
Yes
IP Rating
20
IK Rating
3
Application Environment
Indoor
Power (W)
10
CCT (K)
3000
CRI
>90
Dimming Type
Triac
Light Colour Designation
Warm White
Luminus Flux (lm)
542
Luminous Efficacy (lm/w)
54.2
Beam Angle (°)
35
Light Source
LED
SDCM
<3
UGR
<19
Current Type
DC
Warranty (Years)
5
Lifetime (Hours)
50000
Class
III
Certificates
CE, UKCA
