Imagine Lighting Systems W27-22W
White - 9492857

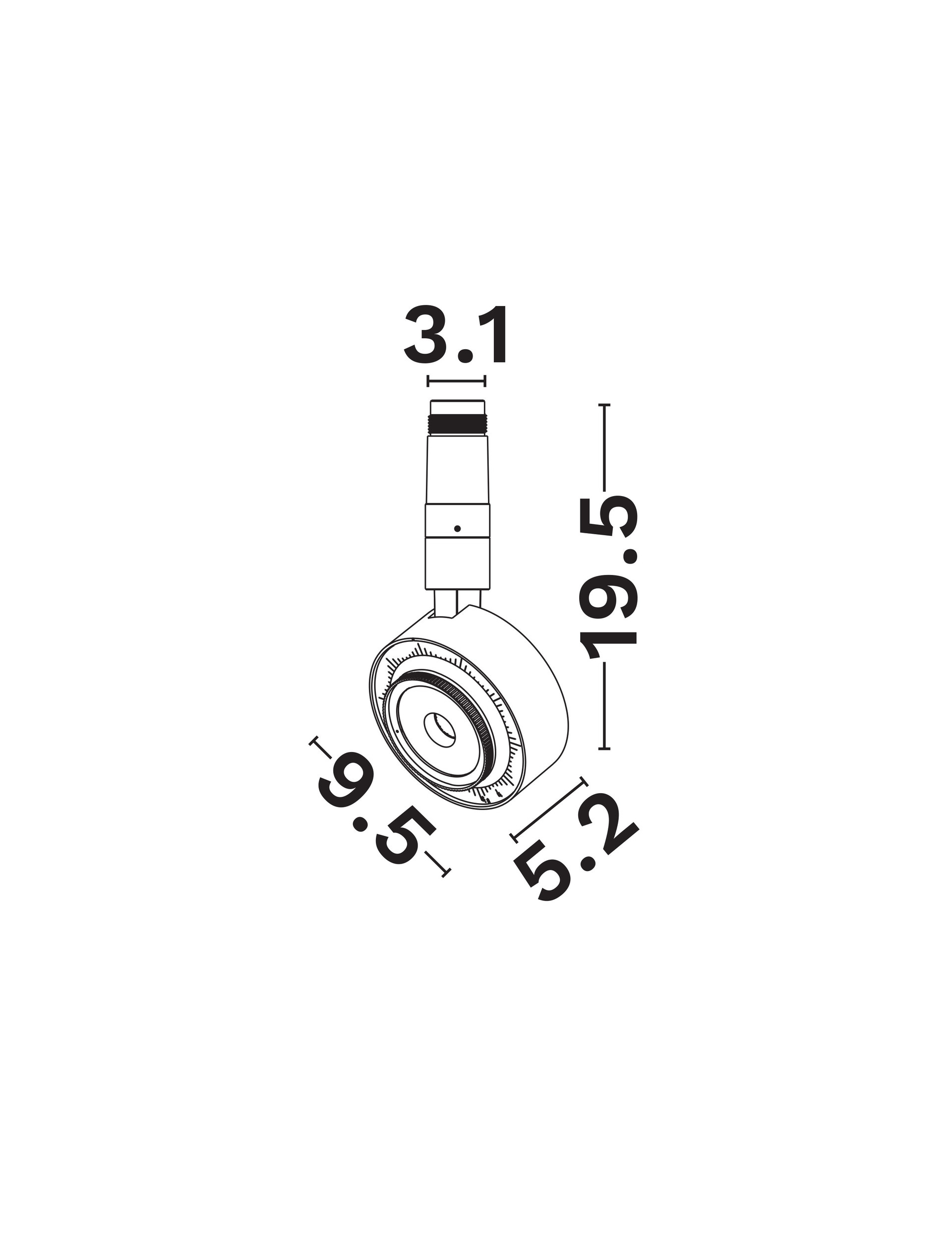

The Imagine Lighting Systems W27-22W is a white LED lighting module designed for indoor architectural applications. It features a compact aluminum body measuring 19.5 cm in height, 5.2 cm in width, and 9.5 cm in length. This surface-mounted module delivers 22W of power with a high color rendering index (CRI >90) and a narrow 15° beam angle. Adjustable for precise light direction, it ensures low glare (UGR <16) and robust protection with an IK3 impact rating and IP20 ingress protection. Ideal for refined indoor lighting setups requiring quality and flexibility.
Dimmable
No
IP Rating
20
Length (cm)
9.5
Height (cm)
19.5
Width (cm)
5.2
Led Module Replaceable
No
Net Weight (kg)
0.386
Gross Weight (kg)
5
EAN
5212017444523
Colour
White
Material
Aluminum
Adjustable
Yes
IP Rating
20
Mounting Type
Surface
IK Rating
3
Application Environment
Indoor
Mounting Location
Ceiling
Power (W)
22
CCT (K)
2700
CRI
>90
Light Colour Designation
Warm White
Luminus Flux (lm)
1278
Luminous Efficacy (lm/w)
58.09
Beam Angle (°)
15
Light Source
LED
UGR
<16
Current Type
DC
Warranty (Years)
5
Lifetime (Hours)
50000
Class
III
Certificates
CE, UKCA
